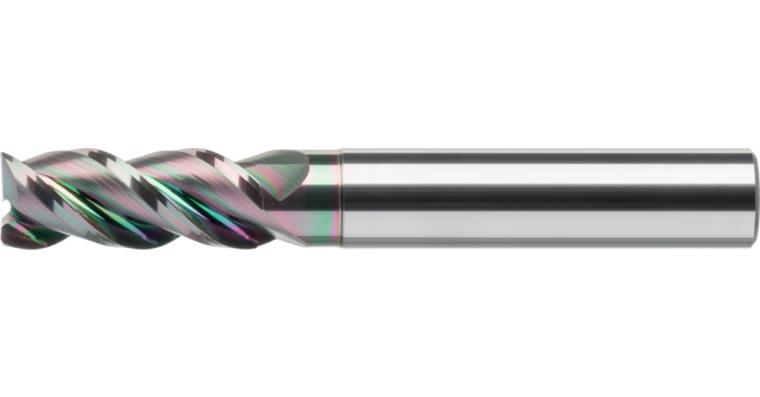

ATORN solid carbide HPC end mill Z3 HB shaft diameter 6x15x57 mm

ATORN solid carbide HPC end mill Z3 HB shaft diameter 6x15x57 mm

ATORN solid carbide HPC end mill Z3 HB shaft diameter 6x15x57 mm
Item no: 1016891 113

Online price:

Available for immediate delivery

Application
HPC end mill with variable pitch for roughing and finishing non-ferrous metals with maximum results.

Execution
  • Solid carbide ultra-fine grain
  • straight shank in line with DIN 6535 HB
  • ULTRA-N PRO-coated
  • with edge protection chamfer
  • Defined edge rounding of the cutting edge
  • centre cutting
  • with clearance
  • Polish sanding

Advantage
  • Ultra-smooth coating thickness
  • Excellent chip removal
  • defined edge rounding for maximum service life
  • Large chip area for optimum chip flow
  • Ideal for NF metals and plastics


Brand: ATORN
Cutting material: SC
Surface: ULTRA N PRO
Type: W
Number of cutting edges (Z): 3 PCS
Twist angle: 45°
Tool holding device: HB parallel shank
Construction length: Normal
Cutting edge diameter: 6 mm
Cutting edge length: 15 mm
Clearance length: 21 mm
Length: 57 mm
Edge protection chamfer length: 0,1 mm
Clearance diameter: 5,8 mm
Shank diameter: 6 mm
fz aluminium: 0,072 mm
Overall stainless steel suitability: 3
fitness not iron total: 1
fitness Titan/Nickel/Super total: 3

ATORN-No.: 12040984

EAN no.: 4050293716429

Product Datasheet Datasheet cutting values
