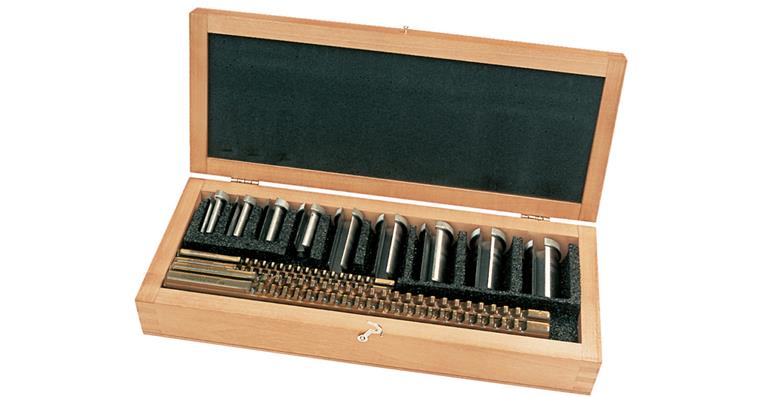

Push broach (keyways broach) set HSS size 218 12–28 mm in wooden box

Push broach (keyways broach) set HSS size 218 12–28 mm in wooden box

Push broach (keyways broach) set HSS size 218 12–28 mm in wooden box
Item no: 1016880 202

Online price:

Available in 5-7 working days.

Application
For the production of keyways in accordance with DIN 6885. For cast iron, steel, brass and aluminium. Use especially on manually operated arbor presses. Short sweeping time (60 seconds), low set-up time and easy handling. Clear specification of a groove for hole and the groove depth through the guide bush and inserts.

Execution
  • Chip angle 8–10°
  • Each broach complete with inserts (e.g. for 3 strokes = 2 inserts)

Delivery
In a wooden box (art. no. 1016880 101 and 203 in plastic case)


Brand: LIZZARD
Min. clearing length: 8 mm
Max. clearing length: 64 mm
Min./max. groove width: 4-8 mm
Composition of set: Broaches: 2 pieces RD II (b1 = 4/5 mm) + 2 pieces RD III (b1 = 6/8 mm)
Guide bushings dia. (d1) mm: 12/14/15/16/18/20/22/24/25 for bores dia. mm: 12–28
Cutting material: HSS
Max. bore diameter: 28 mm
Max. groove width: 8 mm
Min. bore diameter: 12 mm
Min. groove width: 4 mm
Type description: 218

EAN no.: 4046368162185

Product Datasheet
