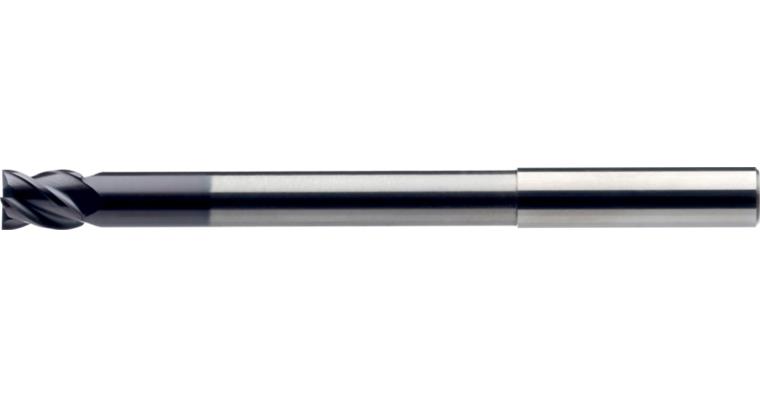

ATORN solid carbide end mill, X-long, diameter 3.0 x 5 x 60 x 100 mm, T=4 RT52

ATORN solid carbide end mill, X-long, diameter 3.0 x 5 x 60 x 100 mm, T=4 RT52

ATORN solid carbide end mill, X-long, diameter 3.0 x 5 x 60 x 100 mm, T=4 RT52
Item no: 1016813 101

Online price:

Still in stock: 4

Application
End mill in an extra-long design with short cutters for machining materials up to 52 HRC, e.g. in dip working and mould forming.

Execution
  • Solid carbide ultra-fine grain
  • Cutting edge finish
  • HA shank pursuant to DIN 6535
  • With clearance
  • Type N
  • Chip angle 3°
  • RockTec 52-coated

Advantage
  • Excellent chip removal and temperature resistance
  • Maximum service life thanks to RockTec 52 coating


Brand: ATORN
Cutting material: SC
Surface: RockTec 52
Type: N
Number of cutting edges (Z): 4 PCS
Twist angle: 40°
Tool holding device: HA parallel shank
Construction length: Extra long
Cutting edge diameter: 3 mm
Cutting edge length: 5 mm
Clearance length: 60 mm
Length: 100 mm
Clearance diameter: 2,8 mm
Shank diameter: 6 mm
fz steel 1300: 0,025 mm
Overall stainless steel suitability: 3
fitness not iron total: 3
fitness Titan/Nickel/Super total: 3

ATORN-No.: 11860198

EAN no.: 4050293195378

Product Datasheet
