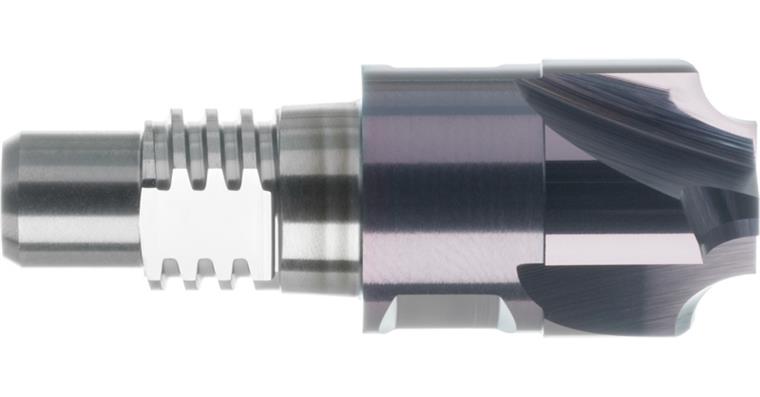

ATORN WK qtr circ mill ctr D=10.0 x 7 x 14 mm r=1.5, T4, WK size 20 size=8 x 3

ATORN WK qtr circ mill ctr D=10.0 x 7 x 14 mm r=1.5, T4, WK size 20 size=8 x 3

ATORN WK qtr circ mill ctr D=10.0 x 7 x 14 mm r=1.5, T4, WK size 20 size=8 x 3
Item no: 1016778 103

Online price:

Availability on demand

Application
For producing radii on machining centres and CNC machines.

Execution
  • Solid carbide ultra-fine grain
  • Type N
  • TiAlN-coated


Brand: ATORN
Cutting material: SC
Surface: TiAlN
Type: N
Number of cutting edges: 4 PCS
Radius (R): 1,5 mm
Min. cutting edge diameter (Ø1): 10 mm
Max. cutting edge diameter (Ø2): 7 mm
Length (L1): 14 mm
Replaceable head system: WKS 20
fz steel 1000: 0,05 mm

ATORN-No.: 12040427

EAN no.: 4050293406900

Product Datasheet
