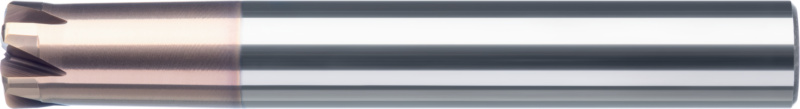

ATORN WK HSC radius cutter D=16.0 x 12 x 21 mm type H T2 WK size 40 size=13 x 4

ATORN WK HSC radius cutter D=16.0 x 12 x 21 mm type H T2 WK size 40 size=13 x 4

ATORN WK HSC radius cutter D=16.0 x 12 x 21 mm type H T2 WK size 40 size=13 x 4
Item no: 1016773 104

Online price:

Available in 4-6 working days.

Application
Radius milling cutter for universal use for copy milling in dip working and mould construction.

Execution
  • Solid carbide ultra-fine grain
  • TiAlN plus-coated
  • Type H
  • Cutting edge finish


Brand: ATORN
Cutting material: SC
Surface: Naco Blue
Type: H
Number of cutting edges: 2 PCS
Twist angle: 30°
Cutting edge diameter (Ø1): 16 mm
Cutting edge length (L2): 12 mm
Length (L1): 21 mm
Clearance diameter (Ø3): 15,4 mm
Replaceable head system: WKS 40
fz hard 52 HRC: 0,06 mm

ATORN-No.: 12040403

EAN no.: 4050293406665

Product Datasheet
