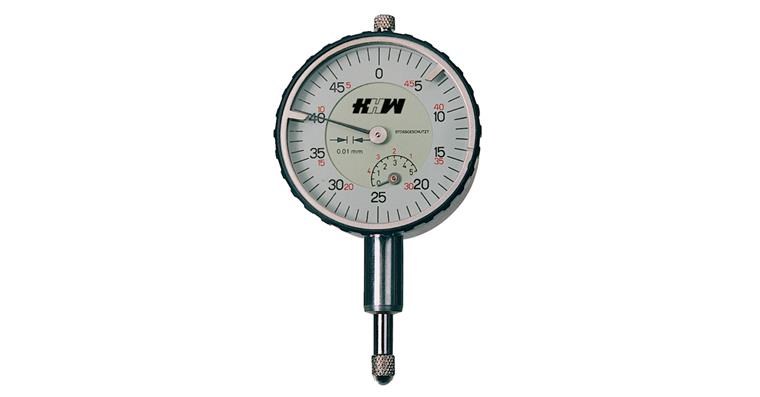

Small dial gauge shock-resistant reading 0,01 mm DIN 878 MR 5 mm dia. 40 mm

Small dial gauge shock-resistant reading 0,01 mm DIN 878 MR 5 mm dia. 40 mm

Small dial gauge shock-resistant reading 0,01 mm DIN 878 MR 5 mm dia. 40 mm
Item no: 1033005 101

Online price:

Still in stock: 9

Application
For measuring lengths and length differences, e.g. concentricity, flatness, positional measurements

Execution
  • Housing made of hot-pressed brass
  • 2x pointers (small pointer for absolute mm display)
  • Line scales with knurled outer ring, rotatable by 360° to the pointer zero position
  • 2x adjustable tolerance marks
  • Dial with black advancing and red returning numbers
  • Replaceable indicator contact points
  • Clamping shank dia. 8 mm h6 hardened and ground
  • Accuracy in accordance with DIN 878
  • Measuring pin and clamping shank made of stainless steel
  • With shock protection, measuring gear protected against hard impacts

Notes
For special probe, see art. no. 1033114.

Brand: HHW
Length measuring range: 5 mm
Digit increment: 0,01 mm
Measurement travel of one pointer revolution: 0,5 mm
Outer diameter: 40 mm
Shank diameter: 8 mm
IP protection class: IP 43
Shock protection: Yes
Material of outer ring: Plastic
Rotating housing: Yes
Shaft length: 12,5 mm
DIN: 878

EAN no.: 4024496080793

Product Datasheet
