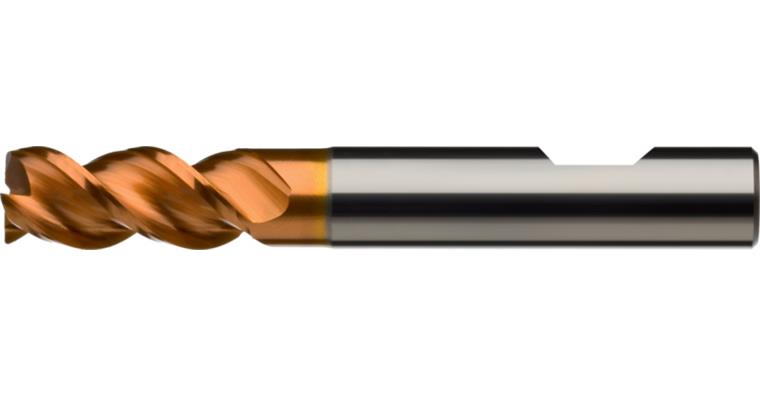

ATORN solid carbide torus milling cutter T3 HB, 5.0 x 13 x 18 x 57, R0.5, coated

ATORN solid carbide torus milling cutter T3 HB, 5.0 x 13 x 18 x 57, R0.5, coated

ATORN solid carbide torus milling cutter T3 HB, 5.0 x 13 x 18 x 57, R0.5, coated
Item no: 1016749 101

Online price:

Available in 6-8 working days.

Application
HPC torus milling cutter for roughing and finishing non-ferrous metals.

Execution
  • Solid carbide ultra-fine grain
  • Straight shank in accordance with DIN 6535 HB
  • Defined edge rounding of the blade
  • Radius tolerance = +/- 0.01 mm
  • Centre cutting
  • With clearance
  • ZrCN ULTRA N-coated

Advantage
  • Higher feed rates and cutting depths possible
  • Defined edge rounding for outstanding service life


Brand: ATORN
Cutting material: SC
Surface: ULTRA N
Type: W
Number of cutting edges (Z): 3 PCS
Twist angle: 45°
Tool holding device: HB parallel shank
Construction length: Normal
Cutting edge diameter: 5 mm
Cutting edge length: 13 mm
Clearance length: 18 mm
Length: 57 mm
Clearance diameter: 4,7 mm
Shank diameter: 6 mm
Edge radius: 0,5 mm
fz aluminium: 0,03 mm

ATORN-No.: 11263660

EAN no.: 4050293342604

Product Datasheet Datasheet cutting values
