ATORN solid carbide end mill T3 HB, 12.0 x 28 x 39 x 84 mm, plain

ATORN solid carbide end mill T3 HB, 12.0 x 28 x 39 x 84 mm, plain

ATORN solid carbide end mill T3 HB, 12.0 x 28 x 39 x 84 mm, plain
Item no: 1016725 107

Online price:

Available for immediate delivery

Application
End mill for universal machining of non-ferrous metals.

Execution
  • Solid carbide ultra-fine grain
  • Centre cutting
  • With clearance
  • Uncoated
  • Straight shank in accordance with DIN 6535 HB
  • Sharp-edged
  • Defined edge rounding of the cutting edge
  • Mirror finish


Brand: ATORN
Cutting material: SC
Surface: Uncoated
Type: W
Number of cutting edges (Z): 3 PCS
Twist angle: 45°
Tool holding device: HB parallel shank
Construction length: Normal
Cutting edge diameter: 12 mm
Cutting edge length: 28 mm
Clearance length: 39 mm
Length: 84 mm
Clearance diameter: 11,4 mm
Shank diameter: 12 mm
fz aluminium: 0,096 mm
Overall stainless steel suitability: 3
fitness not iron total: 1
fitness Titan/Nickel/Super total: 3

ATORN-No.: 11263246

EAN no.: 4050293340839

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN NC spotting drill solid carbide 120°, uncoated, 16.0 mm x 115 mm HB
  •
    Blind hole screw tap 45° for machining aluminium 2.5xD HSS-E/PM-CrN DIN 376 M12
    41,58 €
  • ATORN solid carbide roughing cutter Z3 HA shaft diameter 20.0 x 40 x 100 mm
  •
    ATORN solid carbide end mill T2 HB, 8.0 x 19 x 26 x 63 mm, plain
  •
    ATORN solid carbide end mill T2 HB, 12.0 x 26 x 36 x 83 mm, plain
  •
    ATORN solid carbide end mill T3 long HA, 3.0 x 15 x 21 x 64 mm, plain
  •
    ATORN solid carbide roughing cutter Z3 HB shaft diameter 20.0 x 41 x 104 mm
  •
    ATORN angular milling cutter 90 degrees with thread diameter 20.0 mm Z5
  •
    ATORN 90° lng edge mill cutter w. shaft D=25.0mm/2 tooth for ind ins AD.X 0903..
  •
    ATORN claw jaws type KB-K 125 mm with chip breaker 3x5 mm
  •
    ATORN V-block jaw type PB 125 mm with horizontal and vertical V-block
  •

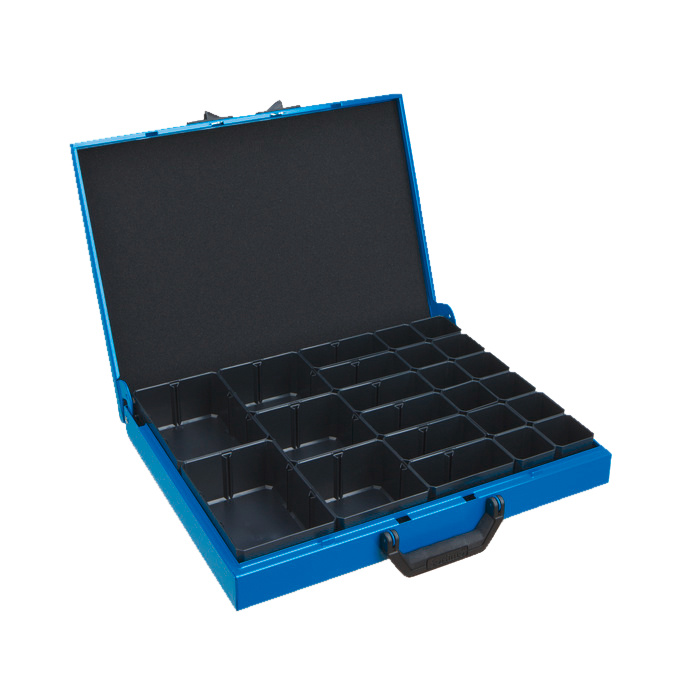

    Small parts magazine metal case KM 321 23 compartments WxHxD 440x66x330 mm
