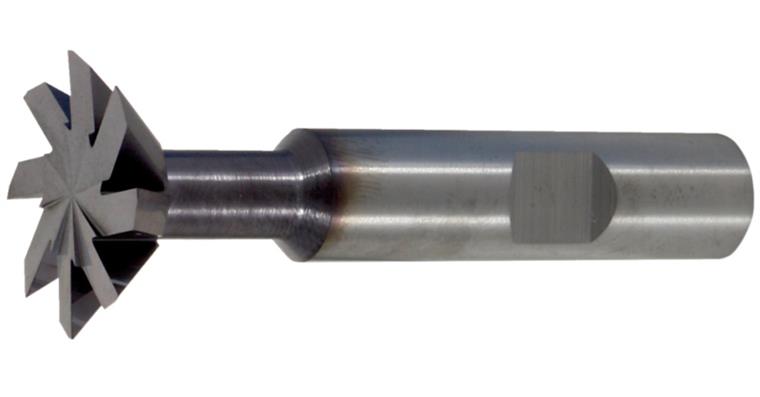

SC angle cutter 45° shape C 9 cttng edges DIN 6535 HB Alcrona L=80 mm di 38 mm

SC angle cutter 45° shape C 9 cttng edges DIN 6535 HB Alcrona L=80 mm di 38 mm

SC angle cutter 45° shape C 9 cttng edges DIN 6535 HB Alcrona L=80 mm di 38 mm
Item no: 1016662 107

Online price:

Available in 6-8 working days.

Application
For cutting angle grooves (slide guideways etc.)

Execution
  • Shape C
  • Cutting edge tapering in the direction of the shank
  • For cutting on periphery and end face
  • Straight shank with driving surface in accordance with DIN 1835 B
  • Right-cutting

Notes
Drive up to full engagement fz with 50 %.

Brand: LIZZARD
Material to be processed: Steel | Stainless steel | Cast metal
Chamfer angle: 45 Degree
Cutting edge diameter: 38 mm
Width of cutting edge: 10,0 mm
Length: 80 mm
Shank diameter: 16 mm
Number of cutting edges (Z): 9 PCS
DIN: 1833
Coolant supply: External
Form: C
Cutting angle: 45
