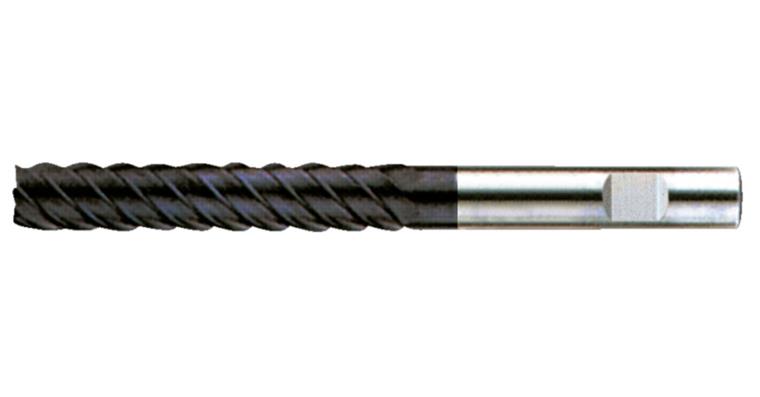

SC end mill cyl./6535 HB DIN 6527 extra long 6 cutt. edges P20-K40/TiAlN 25 mm

SC end mill cyl./6535 HB DIN 6527 extra long 6 cutt. edges P20-K40/TiAlN 25 mm

SC end mill cyl./6535 HB DIN 6527 extra long 6 cutt. edges P20-K40/TiAlN 25 mm
Item no: 1016619 207

Online price:

Available in 6-8 working days.

Application
For circumferential milling as a finishing operation to achieve optimum surface quality (face cut only with low cutting depths).


Brand: LIZZARD
Material to be processed: Steel | Hardened steel
Cutting edge diameter: 25 mm
Cutting edge length: 92 mm
Length: 180 mm
Shank diameter: 25 mm
Number of cutting edges (Z): 6 PCS
Twist angle: 45° (right)
Center cutting: No
Type: HSC
Construction length: Extra long
Design of cutting edges: Smoothing
Cutting direction: Right-hand cutting
fz steel 1000: 0,07 mm
