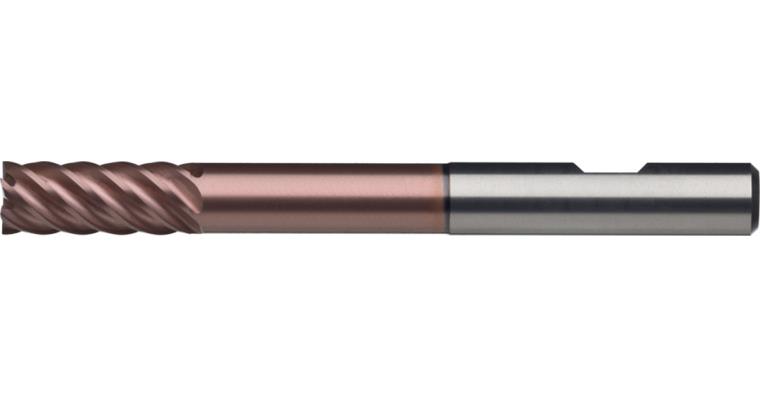

ATORN ultra-solid carbide VA end mill, 8.0 x 24 x 68 mm, DIN 6535 HB shaft

ATORN ultra-solid carbide VA end mill, 8.0 x 24 x 68 mm, DIN 6535 HB shaft

ATORN ultra-solid carbide VA end mill, 8.0 x 24 x 68 mm, DIN 6535 HB shaft
Item no: 1016616 304

Online price:

Available in 5-7 working days.

Application
For circumferential milling as a finishing process to create a high surface quality. Face cut only with shallow cutting depths.

Execution
  • Solid carbide ultra-fine grain
  • Straight shank pursuant to DIN 6535 HB
  • ULTRA-coated
  • Centre cutting
  • With clearance


Brand: ATORN
Cutting material: SC
Surface: ULTRA
Type: VA
Number of cutting edges (Z): 6 PCS
Twist angle: 45°
Tool holding device: HB parallel shank
Construction length: Normal
Cutting edge diameter: 8 mm
Cutting edge length: 24 mm
Clearance length: 30 mm
Length: 68 mm
Edge protection chamfer length: 0,1 mm
Clearance diameter: 7,6 mm
Shank diameter: 8 mm
fz steel 1000: 0,12 mm
Overall stainless steel suitability: 1
fitness not iron total: 1
fitness Titan/Nickel/Super total: 1

ATORN-No.: 10911100

EAN no.: 4050293093551

Product Datasheet Datasheet cutting values
