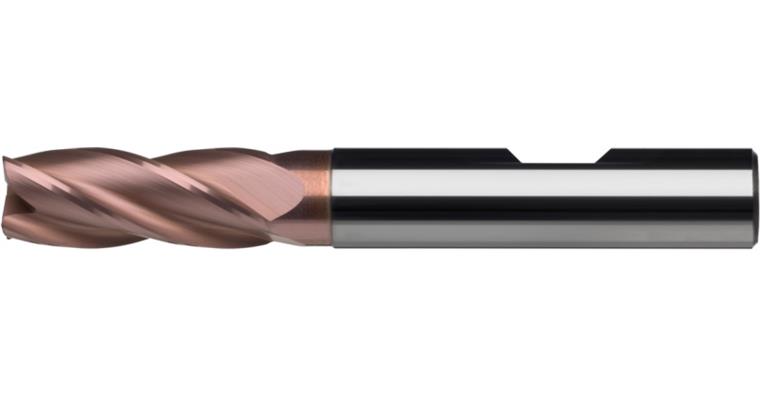

ATORN solid carbide end mill UHPC, 8.0 x 22 x 70 mm, DIN 6535 HB shaft

ATORN solid carbide end mill UHPC, 8.0 x 22 x 70 mm, DIN 6535 HB shaft

1016610108 ATORN solid carbide end mill UHPC, 8.0 x 22 x 70 mm, DIN 6535 HB shaft
Item no: 1016610 108

Online price:

Available for immediate delivery

Application
End/torus milling cutter for universal machining.

Execution
  • Solid carbide ultra-fine grain
  • Up to Ø 6 mm straight shank pursuant to DIN 6535 HA
  • From Ø 8 mm straight shank pursuant to DIN 6535 HB
  • ULTRA-coated
  • Centre cutting
  • Ø 2-4 mm without clearance


Brand: ATORN
Cutting material: SC
Surface: ULTRA
Type: N
Number of cutting edges (Z): 4 PCS
Twist angle: 30°
Tool holding device: HB parallel shank
Construction length: Normal
Cutting edge diameter: 8 mm
Cutting edge length: 22 mm
Clearance length: 32 mm
Length: 70 mm
Clearance diameter: 7,7 mm
Shank diameter: 8 mm
fz steel 1000: 0,096 mm
Overall stainless steel suitability: 1
fitness not iron total: 2
fitness Titan/Nickel/Super total: 2

ATORN-No.: 10911682

EAN no.: 4050293099300

Product Datasheet Datasheet cutting values
