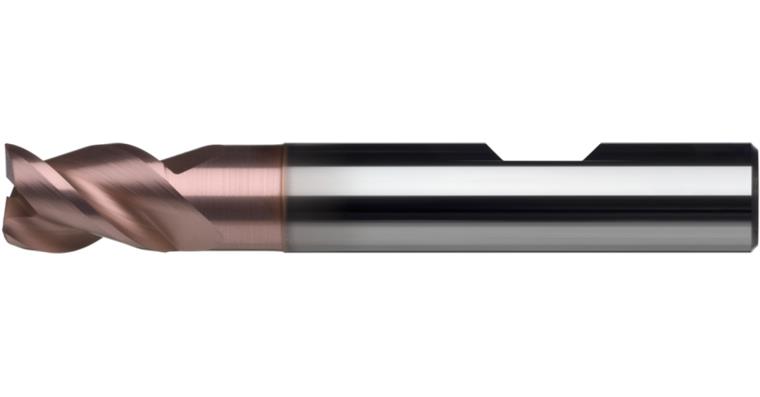

ATORN SC slotting cutter, TiAlN Z3, 20.0 mm, extra short, 45° MF, teeth = 3

ATORN SC slotting cutter, TiAlN Z3, 20.0 mm, extra short, 45° MF, teeth = 3

ATORN SC slotting cutter, TiAlN Z3, 20.0 mm, extra short, 45° MF, teeth = 3
Item no: 1016605 117

Online price:

Still in stock: 5

Application
Universal end mill for plunge, groove and slot milling as well as for face and circumferential milling.

Execution
  • Solid carbide ultra-fine grain
  • Straight shank pursuant to DIN 6535 HB
  • Centre cutting
  • With edge protection chamfer
  • With clearance
  • ULTRA-coated


Brand: ATORN
Cutting material: SC
Surface: ULTRA
Type: W
Number of cutting edges (Z): 3 PCS
Twist angle: 45°
Tool holding device: HB parallel shank
Construction length: Short
Cutting edge diameter: 20 mm
Cutting edge length: 26 mm
Clearance length: 40 mm
Length: 92 mm
Edge protection chamfer length: 0,2 mm
Clearance diameter: 19,5 mm
Shank diameter: 20 mm
fz steel 1000: 0,12 mm
Overall stainless steel suitability: 2
fitness not iron total: 2
fitness Titan/Nickel/Super total: 2

ATORN-No.: 10910672

EAN no.: 4050293090772

Product Datasheet Datasheet cutting values
