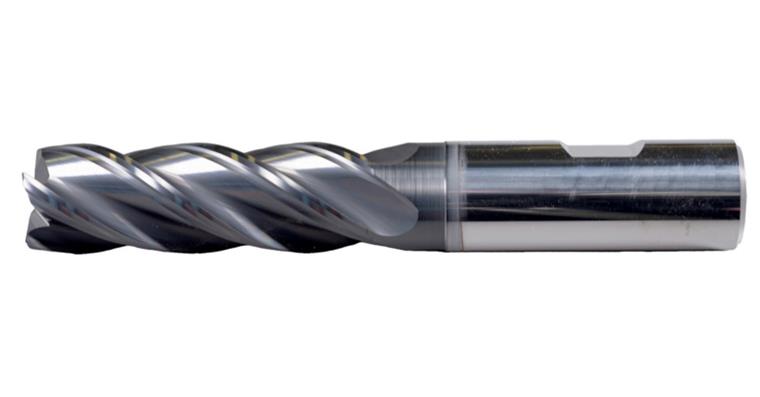

HHW SC HPC end mill INOX extra-long Alcrona Pro HB shank Z4 dia. 20

HHW SC HPC end mill INOX extra-long Alcrona Pro HB shank Z4 dia. 20

HHW SC HPC end mill INOX extra-long Alcrona Pro HB shank Z4 dia. 20
Item no: 1016595 320

Online price:

Available for immediate delivery

Application
For universal roughing and finishing in stainless steels, optimum machining performance even at high cutting speeds. Also suitable for steels up to 1100 N/mm2.

Execution
  • Unequal cutting edge pitch
  • With 45° edge protection chamfer
  • With clearance

Advantage
  • Extremely smooth running
  • Defined edge rounding for maximum service life
  • Minimal heat generation
  • Optimised geometry
  • Reinforced core diameter


Brand: LIZZARD
Material to be processed: Stainless steel | Universal use
Cutting edge diameter: 20 mm
Cutting edge length: 60 mm
Clearance length: 74 mm
Length: 126 mm
Clearance diameter: 19,5 mm
Shank diameter: 20 mm
Edge protection chamfer length: 0,2 mm
Edge protection for chamfer angle: 45 Degree
Number of cutting edges (Z): 4 PCS
Twist angle: 35-38°
Center cutting: Yes
Type: UNI
Construction length: Long
Design of cutting edges: Smoothing
Cutting direction: Right-hand cutting
fz stainless steel: 4,8 mm
