Solid carbide end mill G2 extra long HB 35/38° 14x100 mm

Solid carbide end mill G2 extra long HB 35/38° 14x100 mm

Solid carbide end mill G2 extra long HB 35/38° 14x100 mm
Item no: 1016555 106

Online price:

Available for immediate delivery

Application
for use in cast iron, stainless steel and steel up to 1,300 N/mm²

Execution
  • Centre cutting
  • Optimised chip chamber
  • Up to 80 % longer service life and up to 60 % more feed
  • Roughing and finishing with just one tool
  • Low-vibration running

Advantage
Maximum machining performance


Brand: LIZZARD
Material to be processed: Stainless steel | Steel | Cast metal
Cutting edge diameter: 14 mm
Cutting edge length: 48 mm
Length: 100 mm
Shank diameter: 14 mm
Edge protection chamfer length: 0,3 mm
Edge protection for chamfer angle: 45 Degree
Number of cutting edges (Z): 4 PCS
Twist angle: 35-38°
Center cutting: Yes
Type: G2
Construction length: Extra long
Design of cutting edges: Smoothing
Cutting direction: Right-hand cutting
fz steel 1000: 0,059 mm

Versions
loading
Keywords:

[Text nicht gefunden]

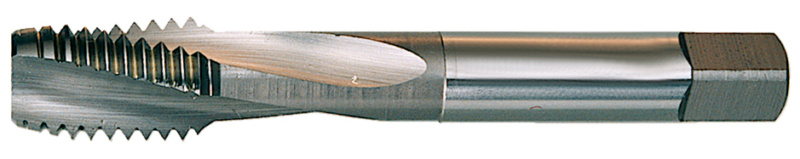

  • Machine tap DIN 352 spiral-fluted 15° HSS-E short M10
  •
