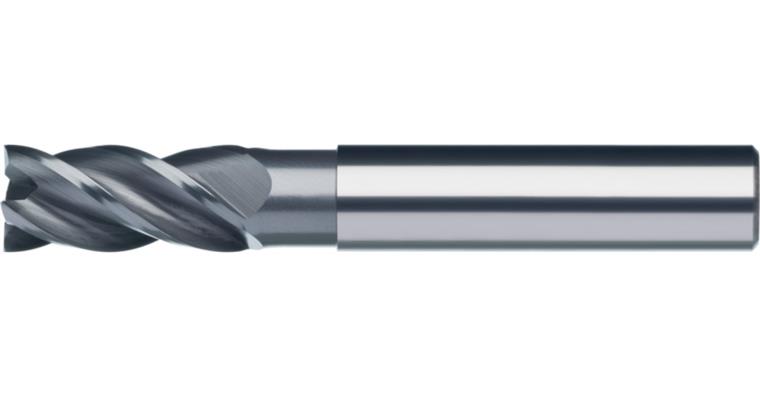

ATORN SC HPC end mill diameter 12.0 x 26 x 37 x 83 mm, HA shaft

ATORN SC HPC end mill diameter 12.0 x 26 x 37 x 83 mm, HA shaft

1016544106 ATORN SC HPC end mill diameter 12.0 x 26 x 37 x 83 mm, HA shaft
Item no: 1016544 106

Online price:

Available in 8-10 working days.

Application
HPC end mill with uneven helical and uneven pitch for rough machining and finish machining of stainless steel, titanium alloy, nickel and copper alloys. The uneven helical pitch means that vibrations on the tool are reduced, which results in outstanding finished surfaces, while, at the same time, feed rates and cutting depths can be increased.

Execution
  • ultra-fine grain cemented carbide
  • with uneven helical and cutter distribution (35/38°)
  • HA straight shank
  • with clearance
  • high-performance ULTRA MS layer
  • with edge protection chamfer
  • defined cutting edge rounding
  • centre cutting

Advantage
  • rough machining and finishing with just one tool
  • optimum suitability for trochoidal milling
  • HPC geometry for maximum feed rates and running smoothness
  • suitable for large cutting depths


Brand: ATORN
Cutting material: SC
Surface: ULTRA MS
Type: VA
Number of cutting edges (Z): 4 PCS
Twist angle: 35° | 38°
Tool holding device: HA parallel shank
Construction length: Normal
Cutting edge diameter: 12 mm
Cutting edge length: 26 mm
Clearance length: 37 mm
Length: 83 mm
Edge protection chamfer length: 0,2 mm
Clearance diameter: 11 mm
Shank diameter: 12 mm
fz stainless steel: 0,052 mm
Overall stainless steel suitability: 1
fitness not iron total: 3
fitness Titan/Nickel/Super total: 1

ATORN-No.: 11861074

EAN no.: 4050293359985

Product Datasheet Datasheet cutting values
