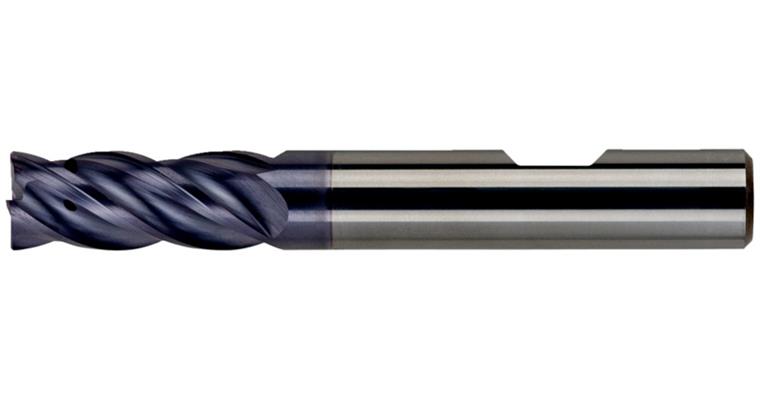

SC end mill 35/38° IC long type H 4 cut. edges C-cut DIN 6535HB P20-K40 16.0 mm

SC end mill 35/38° IC long type H 4 cut. edges C-cut DIN 6535HB P20-K40 16.0 mm

SC end mill 35/38° IC long type H 4 cut. edges C-cut DIN 6535HB P20-K40 16.0 mm
Item no: 1016538 116

Online price:

Will be ordered for you

Application
for use in cast iron, stainless steel and steel up to 1,300 N/mm²

Execution
  • Centre cutting
  • Optimised chip chamber
  • Up to 80 % longer service life and up to 60 % more feed
  • Roughing and finishing with just one tool
  • Low-vibration running
  • With internal cooling

Advantage
  • Uneven twist angle produces smooth, vibration-free running and good surface quality
  • High cutting performance
  • Roughing and finishing with just one tool


Brand: LIZZARD
Material to be processed: Universal use
Cutting edge diameter: 16 mm
Cutting edge length: 32 mm
Length: 92 mm
Shank diameter: 16 mm
Edge protection chamfer length: 0,4 mm
Edge protection for chamfer angle: 45 Degree
Number of cutting edges (Z): 4 PCS
Twist angle: 35-38°
Center cutting: Yes
Type: H
Construction length: Normal
Design of cutting edges: Smoothing
Cutting direction: Right-hand cutting
fz steel 1000: 0,09 mm
