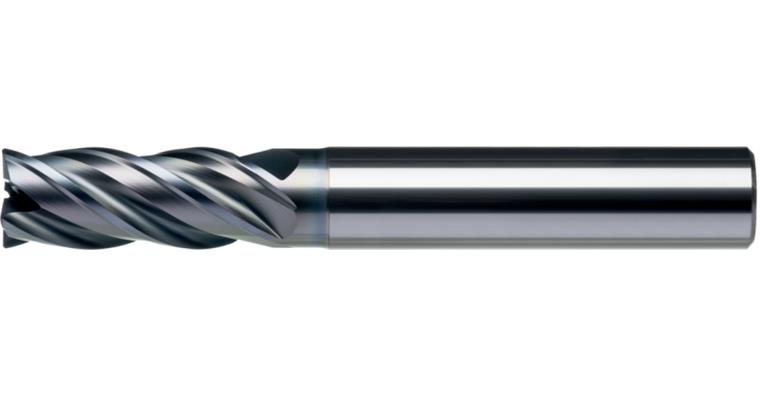

ATORN HPC POWER SC end mill, STEEL, 20.0 x 38 x 54 x 104 mm HA, type N, long

ATORN HPC POWER SC end mill, STEEL, 20.0 x 38 x 54 x 104 mm HA, type N, long

1016527120 ATORN HPC POWER SC end mill, STEEL, 20.0 x 38 x 54 x 104 mm HA, type N, long
Item no: 1016527 120

Online price:

Only while stocks last: 4
Replacement article

Application
HPC end mill for machining steel and cast iron — low-vibration, multi-functional and high-performance tool for rough machining and finishing up to 2xD.

Execution
  • Solid carbide ultra-fine grain
  • ULTRA high-performance coating
  • Centre cutting
  • Uneven twist angle: 35°/38°
  • Unequal cutting edge pitch
  • With edge protection chamfer
  • With clearance
  • Cutting edge with edge preparation

Advantage
  • Increased material removal rate
  • High level of process reliability up to 2xD
  • Higher feed rates and cutting depths possible
  • Reduces vibrations
  • Ideal for static and dynamic trochoidal milling


Brand: ATORN
Cutting material: SC
Surface: ULTRA
Type: N
Number of cutting edges (Z): 4 PCS
Twist angle: 35° | 38°
Tool holding device: HA parallel shank
Construction length: Normal
Cutting edge diameter: 20 mm
Cutting edge length: 38 mm
Clearance length: 54 mm
Length: 104 mm
Edge protection chamfer length: 0,3 mm
Clearance diameter: 19 mm
Shank diameter: 20 mm
fz steel 1000: 0,22 mm
Overall stainless steel suitability: 3
fitness not iron total: 3
fitness Titan/Nickel/Super total: 3

ATORN-No.: 10617244

EAN no.: 4050293410211

Product Datasheet Datasheet cutting values
