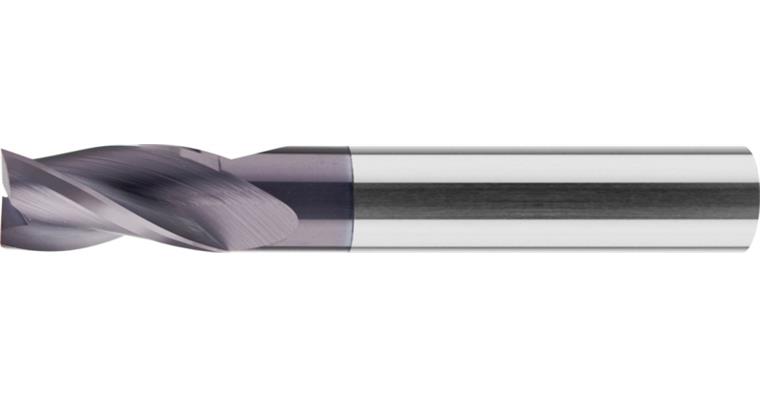

VHM-Schaftfräser Größe M 30° TiAlN-beschichtet HA Z3 Ø8

VHM-Schaftfräser Größe M 30° TiAlN-beschichtet HA Z3 Ø8

VHM-Schaftfräser Größe M 30° TiAlN-beschichtet HA Z3 Ø8
Item no: 1016521 115

Online price:

Available in 6-8 working days.

Application
for universal use up to 1,300 N/mm²

Execution
Centre cutting


Brand: LIZZARD
Material to be processed: Universal use
Cutting edge diameter: 8 mm
Cutting edge length: 16 mm
Length: 63 mm
Shank diameter: 8 mm
Number of cutting edges (Z): 3 PCS
Twist angle: 30° (right)
Center cutting: Yes
Type: N
Construction length: Standard
Design of cutting edges: Smoothing
Cutting direction: Right-hand cutting
fz steel 1000: 0,05 mm

Versions
loading
