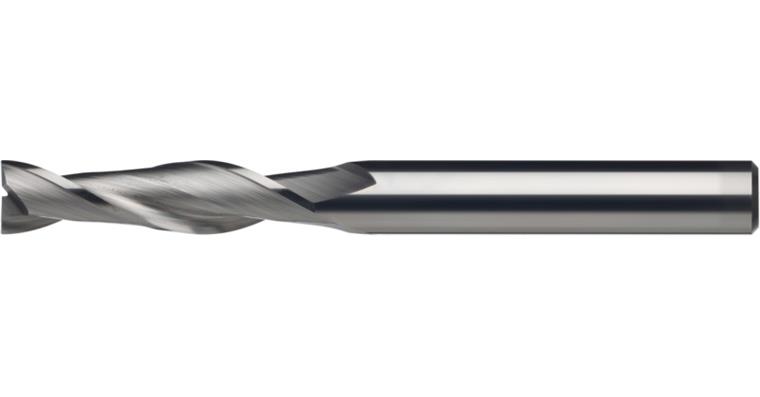

ATORN solid carbide slotting cutter, long, 8.0 mm, 2-cutter, DIN 6535 HA shaft

ATORN solid carbide slotting cutter, long, 8.0 mm, 2-cutter, DIN 6535 HA shaft

ATORN solid carbide slotting cutter, long, 8.0 mm, 2-cutter, DIN 6535 HA shaft
Item no: 1016511 105

Online price:

Available for immediate delivery

Application
Suitable for universal plunge, groove and clearance milling.

Execution
  • Solid carbide ultra-fine grain
  • Straight shank pursuant to DIN 6535 HA
  • Centre cutting


Brand: ATORN
Cutting material: SC
Surface: Uncoated
Type: N
Number of cutting edges (Z): 2 PCS
Twist angle: 30°
Tool holding device: HA parallel shank
Construction length: Long
Cutting edge diameter: 8 mm
Cutting edge length: 40 mm
Length: 100 mm
Edge protection chamfer length: 0,2 mm
Shank diameter: 8 mm
fz steel 1000: 0,04 mm
Overall stainless steel suitability: 1
fitness not iron total: 2
fitness Titan/Nickel/Super total: 2

ATORN-No.: 10910594

EAN no.: 4050293089998

Product Datasheet Datasheet cutting values
