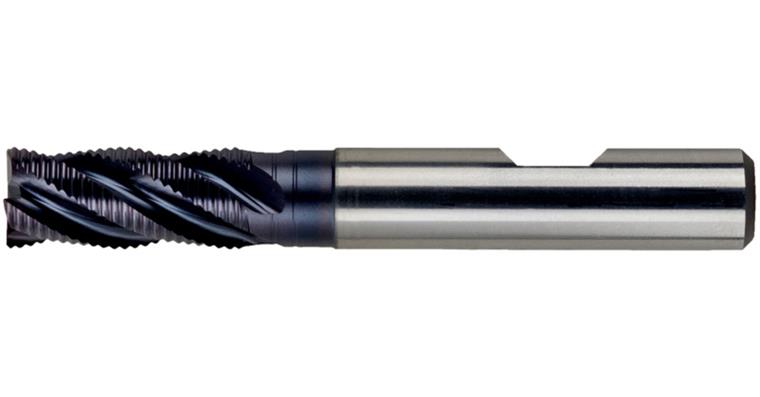

Shank rgh. cutt. cyl. DIN 844 B ty. HR shrt 4 cutt. edg Z-cut HSS-PM/TiAlN 16mm

Shank rgh. cutt. cyl. DIN 844 B ty. HR shrt 4 cutt. edg Z-cut HSS-PM/TiAlN 16mm

Shank rgh. cutt. cyl. DIN 844 B ty. HR shrt 4 cutt. edg Z-cut HSS-PM/TiAlN 16mm
Item no: 1016268 106

Online price:

Available for immediate delivery

Application
Also suitable for dry machining.

Execution
  • Normal
  • With eccentric relief grinding
  • With released straight shank with driving surface in accordance with DIN 1835 B
  • Fine roughing profile
  • Right cutting with centre cutting


Brand: LIZZARD
Material to be processed: Universal use
Cutting edge diameter: 16 mm
Cutting edge length: 32 mm
Length: 92 mm
Shank diameter: 16 mm
Clearance diameter: 15,0 mm
Number of cutting edges (Z): 4 PCS
Twist angle: 35° (right)
Center cutting: Yes
Type: HR
Construction length: Normal
Coolant supply: External
Design of cutting edges: Roughing
Cutting direction: Right-hand cutting
Tolerance of shank diameter: h6
