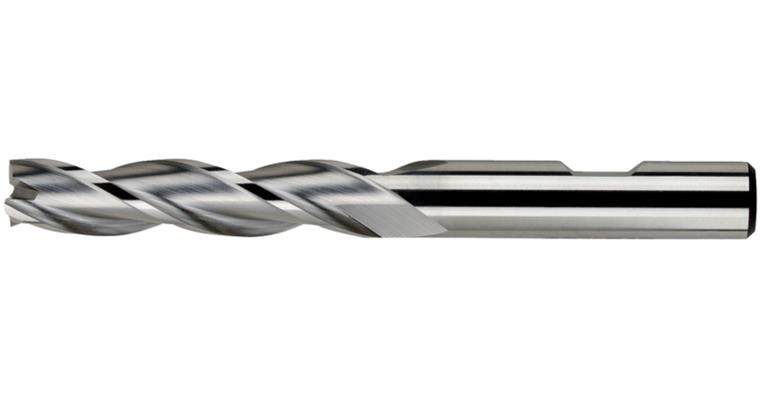

End mill cyl. DIN 844 B type W long 3 cutting edges centre-cutting HSS-E 10 mm

End mill cyl. DIN 844 B type W long 3 cutting edges centre-cutting HSS-E 10 mm

End mill cyl. DIN 844 B type W long 3 cutting edges centre-cutting HSS-E 10 mm
Item no: 1016161 206

Online price:

Available in 11-13 working days.

Application
For soft to tough, long-chipping materials such as aluminium and copper alloys.

Execution
  • Long
  • HSSE Co8
  • Uncoated
  • Right-cutting
  • Right-hand twist, approx. 35°
  • Centre cutting
  • With eccentric relief grinding
  • With released straight shank with driving surface in accordance with DIN 1835 B


Brand: LIZZARD
Material to be processed: Aluminium
Cutting edge diameter: 10 mm
Cutting edge length: 45 mm
Length: 95 mm
Shank diameter: 10 mm
Number of cutting edges (Z): 3 PCS
Twist angle: 35° (right)
Type: W
Construction length: Normal
Coolant supply: External
Design of cutting edges: Smoothing
Cutting direction: Right-hand cutting
Tolerance of cutting edge diameter: e8
Tolerance of shank diameter: h6
