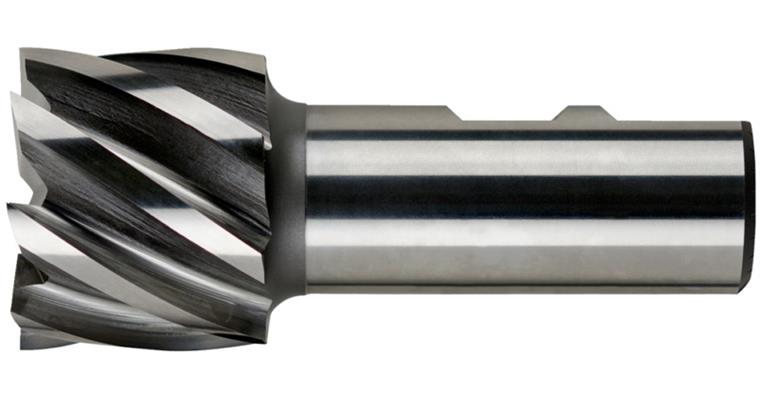

End mill cyl. DIN 844 B type N short 6 cutting edges HSS-E 30.0 mm

End mill cyl. DIN 844 B type N short 6 cutting edges HSS-E 30.0 mm

End mill cyl. DIN 844 B type N short 6 cutting edges HSS-E 30.0 mm
Item no: 1016150 101

Online price:

Still in stock: 4

Application
For normal to solid materials.

Execution
  • Short
  • HSSE Co8
  • Uncoated
  • With eccentric relief grinding
  • Straight shank with driving surface in accordance with DIN 1835 B
  • Multi-flute cutter, free in the middle on face side
  • Right-hand spiral 30°


Brand: LIZZARD
Material to be processed: Universal use
Cutting edge diameter: 30 mm
Cutting edge length: 30 mm
Length: 90 mm
Shank diameter: 20 mm
Number of cutting edges (Z): 6 PCS
Twist angle: 30°
Construction length: Short
Coolant supply: External
Design of cutting edges: Smoothing
Cutting direction: Right-hand cutting
Tolerance of cutting edge diameter: k10
Tolerance of shank diameter: h6
