Carbide thermic drill bit Flowdrill flat short dia. 16.7 mm M18 without collar

Carbide thermic drill bit Flowdrill flat short dia. 16.7 mm M18 without collar

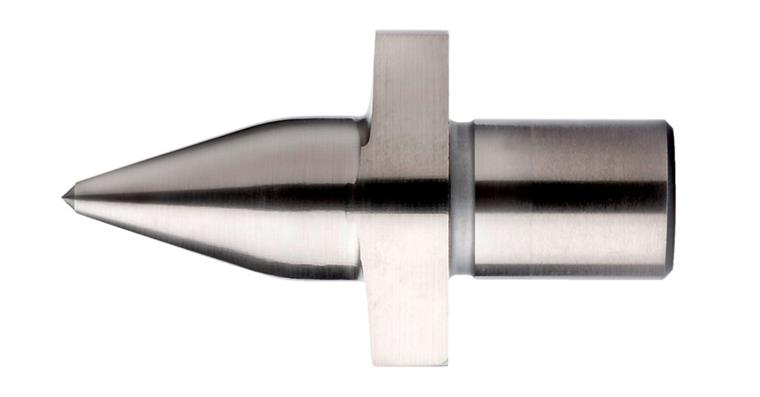

1014756111 Carbide thermic drill bit Flowdrill flat short dia. 16.7 mm M18 without collar
Item no: 1014756 111

Online price:

Available in 4-6 working days.

Application
The thermic drill bit can be used in all common materials such as steel, stainless steel, aluminium, copper, brass and in high-strength special materials.

Execution
  • This design removes the high-flowing material using two flat cutting edges to create an even workpiece surface
  • This tool variant is available in a short or long version, depending on the starting wall thickness being drilled
  • A flowdrill is a carbide tool used to create additional wall thickness by displacing raw material
  • This locally produced extra material thickness can be used for a load-bearing thread, as a soldering and welding zone, for sealing surfaces or as a bearing point
  • The tool diameter can be between 1 and 40 mm and the wall thickness to be machined between 0.5 and 10 mm

Advantage
  • Localised increase in wall thickness
  • Sufficient thread length
  • Faster process cycle
  • High accuracy and long service life
  • Suitable for series production, e.g. on CNC
    • Chipless


Brand: FLOWDRILL
Thread dimension: M18
Core hole diameter: 16,7 mm
Min./max. material thickness: 1.0-4.6 mm
Shank diameter: 18 mm
Effective length: 30,4 mm
Max. feed speed: 150 mm/min
Power rating: 2,5 kW
Cutting material: Carbide
Max. material thickness: 4,6 mm
Type: Short/flat

Manufacturer part no.: 167KF00

Product Datasheet
