Solid carbide thread cutter pitch 0.75 M6 l=14.25 mm without I.C.

Solid carbide thread cutter pitch 0.75 M6 l=14.25 mm without I.C.

Solid carbide thread cutter pitch 0.75 M6 l=14.25 mm without I.C.
Item no: 1014612 102

Online price:

Available in 5-6 working days.

Execution
  • Fixed size design
  • Corrected thread profile for milling precise female threads

Notes
Ensure stable clamping!

Brand: MIMATIC
Material to be processed: Universal use
Cutting material: SC
Surface: TiAlN
Hole type: Clearance/blind hole ≤ 2xD
Coolant supply: External
Tool holding device: HA parallel shank
Cutting edge diameter (d1): 4,8 mm
Pitch: 0,75 mm
Suitable for metric fine threads from: MF6
Length (l1): 55 mm
Effective length of thread milling (l2): 14,25 mm
Shank diameter: 6 mm
Number of cutting edges: 3
Max. thread depth: 2xD
Suitable for thread type: MF
Colour ring system: UNI
DIN: 13
Shank style: Cylindrical DIN 6535-HA
Twist angle: 15°
Type: IR/IL

Manufacturer part no.: 168228

EAN no.: 4024496025268

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN indexable insert, positive, SCMT 09T308-MP HC7620
  •
    ATORN boring bar AMIR-32-AD2403-T11-C
  •
    ATORN boring bar AMIL-40-AD2404-T12-C
  •
    ATORN collet ER20 HP dia. 12.5 mm sealed concentricity 5 µm
  •
    Digital 3-point internal micrometer set XT3D IP67 PROXIMITY in case MR 50-100 mm
  •
    Massiver 6kant-Steckschlüssel Satz DIN 896 A V31CrV3 12teilig SW 6x7-30x32 mm
  •

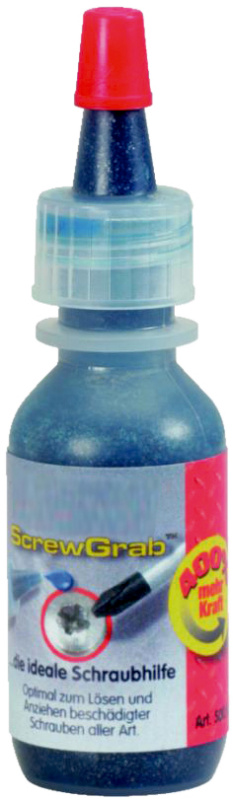

    Screwing aid ScrewGrab 15ml on stripped screws, gentle on the skin, non-toxic
    17,74 €

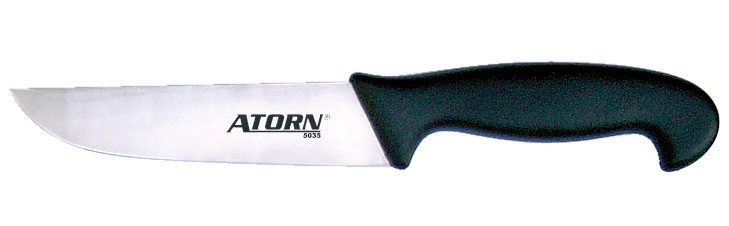

  • ATORN work knife (kitchen knife), length: 150 mm
    31,57 €
  • KNIPEX wire rope shears 190 mm polished head with plastic handle
  •

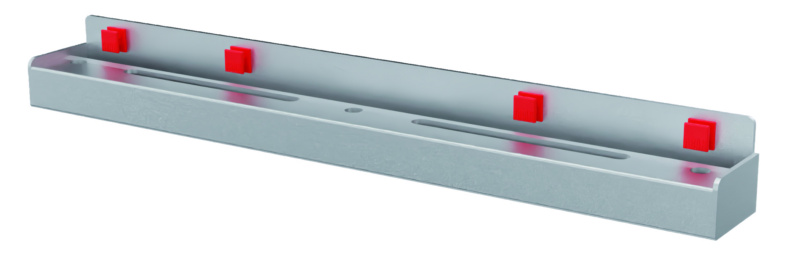

    ABAX Schlosshalter für 15 Schlösser Alufarben
