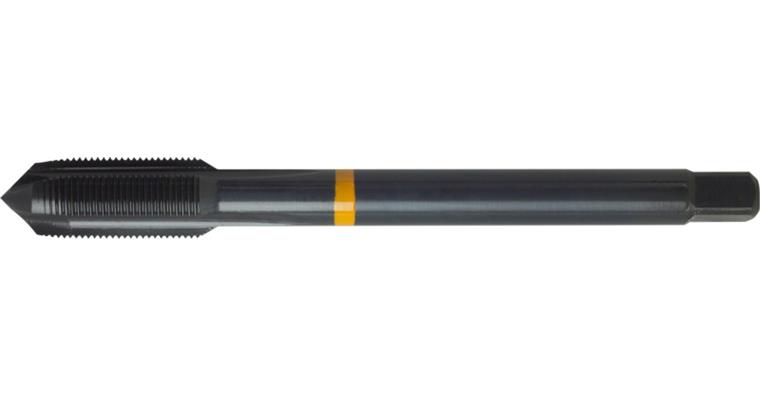

ATORN screw tap HSSE B 374 0° MF42 1.5 mm ISO2 D 3xD CNC M

ATORN screw tap HSSE B 374 0° MF42 1.5 mm ISO2 D 3xD CNC M

ATORN screw tap HSSE B 374 0° MF42 1.5 mm ISO2 D 3xD CNC M
Item no: 1014505 143

Online price:

Available in 6-8 working days.

Application
For producing fine metric threads on CNC or conventional machines in through holes in the stainless steel material group.

Execution
With protruding shank

Advantage
Long service life and process reliability through innovative cutting geometry in machining stainless steel


Brand: ATORN
Material to be processed: Stainless steel
Thread type: Metric fine thread
Thread type x nominal diameter: MF42
Tolerance of screw taps (Tol.): ISO 2 (6H)
Hole type: Clearance hole ≤ 3xD
Lead angle shape: B
Length: 170 mm
Cutting material: HSSE
Surface: Vaporised
Pitch: 1,5 mm
Twist angle: 0°
DIN: 374
Shank diameter: 32 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 40,5 mm
Type: M MAX Control
Coolant supply: External
Shank square: 24 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 2
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 1
fitness not iron total (ISO N): 3
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 3
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 10470814

EAN no.: 4050293018417

Product Datasheet Datasheet cutting values
