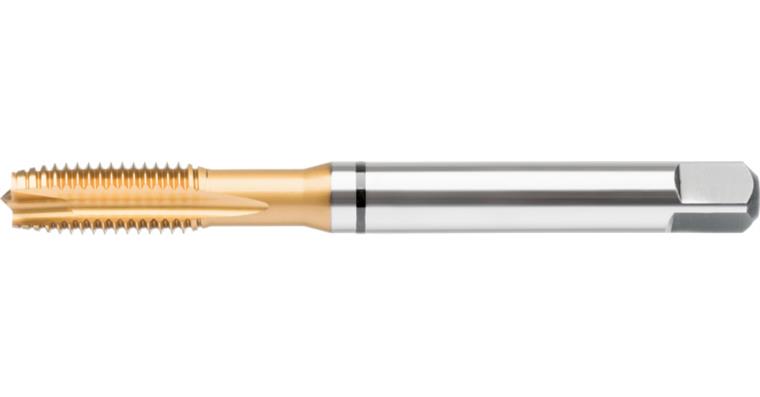

ATORN screw tap HSSE-TiN B 371 0° M10 x 1.5 mm ISO2 3xD

ATORN screw tap HSSE-TiN B 371 0° M10 x 1.5 mm ISO2 3xD

ATORN screw tap HSSE-TiN B 371 0° M10 x 1.5 mm ISO2 3xD
Item no: 1014346 210

Online price:

Available for immediate delivery

Application
For producing metric threads on CNC machines or conventional machines in through holes in the steel, stainless steel, non-ferrous metals and cast iron material groups up to a strength of 1000 N/mm².

Execution
Structural dimensions in accordance with: DIN 371 = reinforced shank (up to M10), DIN 376 = over-long shank (from M12)

Advantage
  • Universal use for maximum flexibility in use
  • Innovative cutter geometry ensures high process reliability even in difficult machining conditions


Brand: ATORN
Material to be processed: Universal use
Thread type: Metric thread
Thread type x nominal diameter: M10
Tolerance of screw taps (Tol.): ISO 2 (6H)
Hole type: Clearance hole ≤ 3xD
Lead angle shape: B
Length: 100 mm
Cutting material: HSSE
Surface: TiN
Pitch: 1,5 mm
Twist angle: 0°
DIN: 371
Shank diameter: 10 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 8,5 mm
Type: UNI 40 Control
Coolant supply: External
Shank square: 8 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 2
Overall stainless steel suitability (ISO M): 1
fitness not iron total (ISO N): 2
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 1
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 11290844

EAN no.: 4050293380316

Product Datasheet Datasheet cutting values
