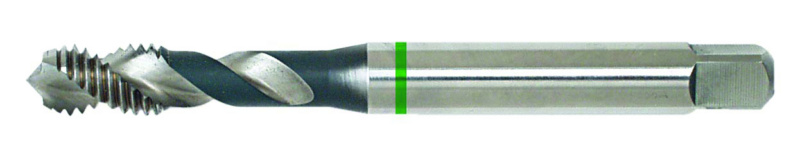

Blind hole screw tap 45° for machining aluminium 2.5xD HSS-E/PM-CrN DIN 376 M12

Blind hole screw tap 45° for machining aluminium 2.5xD HSS-E/PM-CrN DIN 376 M12

Blind hole screw tap 45° for machining aluminium 2.5xD HSS-E/PM-CrN DIN 376 M12
Item no: 1014463 212

Online price:

Available for immediate delivery

Application
- Metric thread
- Blind holes
- Max. drilling depth 2.5xD
- For long-chipping non-ferrous metals

Execution
  • Polished chip grooves for improved chip removal in long-chipping non-ferrous metals
  • Right-hand spiral grooves approx. 45°
  • DIN type C (2-3 chamfer threads)
  • Tolerance range 6H
  • HSSE-PM, CrN-coated


Brand: ATORN
Material to be processed: Aluminium
Thread type: Metric thread
Thread type x nominal diameter: M12
Tolerance of screw taps (Tol.): 6H
Hole type: Blind hole ≤ 2.5xD
Lead angle shape: C
Length: 110 mm
Cutting material: HSSE-PM
Surface: Chrome plated
Pitch: 1,75 mm
Twist angle: 45° (right)
DIN: 376
Shank diameter: 9 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 10,20 mm
Coolant supply: External
Shank square: 7 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 3
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 3
fitness not iron total (ISO N): 2
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 3
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

Versions
loading
Keywords:

You might also be interested in this

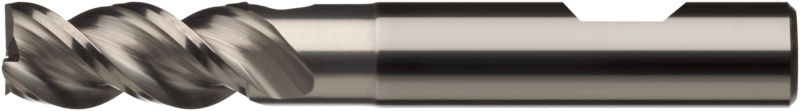

  • ATORN solid carbide end mill T2 HB, 8.0 x 19 x 26 x 63 mm, plain
  •
