Application
For measuring external and internal diameters, centring edges, narrow shoulders, external and internal tapers, dovetails, recesses and bore spacings

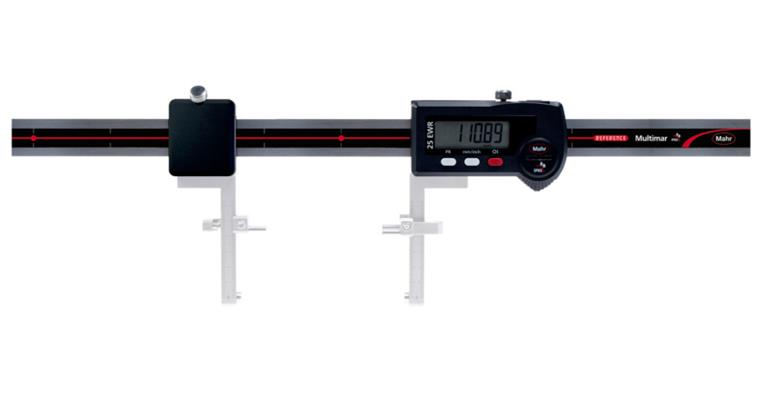

Execution

• Customisable to the measurement task using (optional) modular accessories
• Digital display can always be read as the measuring elements can be mounted on the top or bottom
• Application area can be extended by turning the measuring arms
• Both measuring arm supports can be moved on the rail for optimum balance, particularly practical with small dimensions
• Slider and rail rustproof and hardened
• Functions: ON/OFF, AUTO ON/OFF, RESET (sets the display to zero), mm/inch, LOCK function (key lock), DATA (data transfer)

Delivery
1x battery 3 V (type CR 2032)
1x operating instructions
1x wooden box
Mounting and storage blocks
Without measuring arms/mounting attachments and gauge slides

Notes
For connection cables, see art. nos. 1035200 404-406.
For replacement batteries, see art. no. 1039900 102.
Accessories, see art. no. 1031256.
Further accessories deliverable on request.
