Through hole screw tap M DIN 376 shape B 3xD HSS-E to 1,400 N/mm² M20

Through hole screw tap M DIN 376 shape B 3xD HSS-E to 1,400 N/mm² M20

Through hole screw tap M DIN 376 shape B 3xD HSS-E to 1,400 N/mm² M20
Item no: 1014341 120

Online price:

Available in 6-8 working days.

Application
- Metric thread
- Through holes
- Max. drilling depth 3xD
- Special point geometry for steels up to 1,400 N/mm²

Execution
  • Spiral point tap
  • Tolerance range 6H
  • DIN 371/DIN 376
  • DIN type B (3.5-5 chamfer threads)
  • HSSE

Notes
The problem solver for high-strength materials.

Brand: ATORN
Material to be processed: Steel
Thread type: Metric thread
Thread type x nominal diameter: M20
Tolerance of screw taps (Tol.): 6H
Hole type: Clearance hole ≤ 3xD
Lead angle shape: B
Length: 140 mm
Cutting material: HSSE
Surface: Uncoated
Pitch: 2,5 mm
Twist angle: 0°
DIN: 376
Shank diameter: 16 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 17,50 mm
Coolant supply: External
Shank square: 12 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 1
Overall stainless steel suitability (ISO M): 3
fitness not iron total (ISO N): 3
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 3
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 11290138

EAN no.: 4050293132137

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

You might also be interested in this

  • Through hole screw tap M DIN 371 shape B 3xD HSS-E to 1,400 N/mm² M6
    16,07 €
  • Through hole screw tap M DIN 371 shape B 3xD HSS-E to 1,400 N/mm² M3
    15,68 €

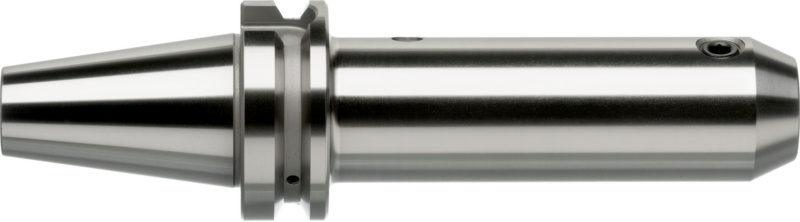

  • ATORN milling cutter holder BT50 (ISO 7388-2) dia. 16 mm A=80 mm
