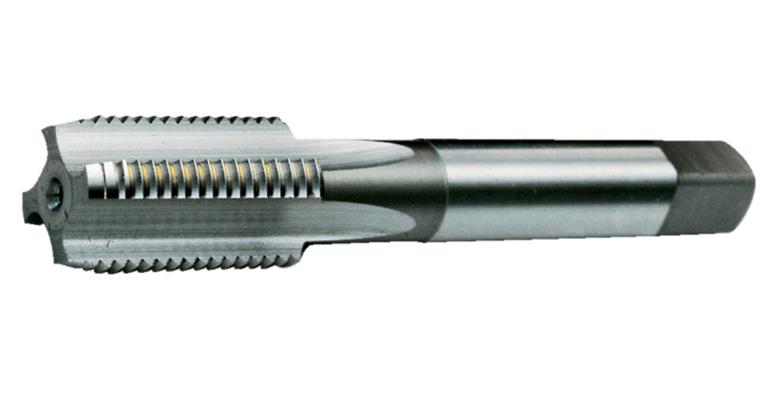

Machine tap DIN 40432 straight HSS-E short PG 9

Machine tap DIN 40432 straight HSS-E short PG 9

1014265102 Machine tap DIN 40432 straight HSS-E short PG 9
Item no: 1014265 102

Online price:

Still in stock: 2

Application
For well-machinable steels up to approx. 800 N/mm² strength, Al-Si alloys up to 5 % Si, for through holes and blind holes.

Execution
For PG armoured pipe thread, flange angle 80°, right-cutting, straight-grooved, DIN chamfer shape C (2-3 turns)

Notes
For blind holes, drill core holes at least 1 x d1 deeper.

Brand: LIZZARD
Material to be processed: Steel
Thread dimension: PG9
Number of thread starts per inch: 18
Cutting material: HSSE
Surface: Uncoated
Hole type: Clearance/blind hole ≤ 2xD
Lead angle shape: C
Length: 70 mm
Cutting edge length: 22 mm
Core hole diameter: 14,00 mm
Shank diameter: 12 mm
Shank square: 9 mm
Thread type: PG
Twist angle: 0°
DIN: 40432
Coolant supply: External
Shank style: Cylindrical with square drive
Cutting direction: Right-hand cutting
