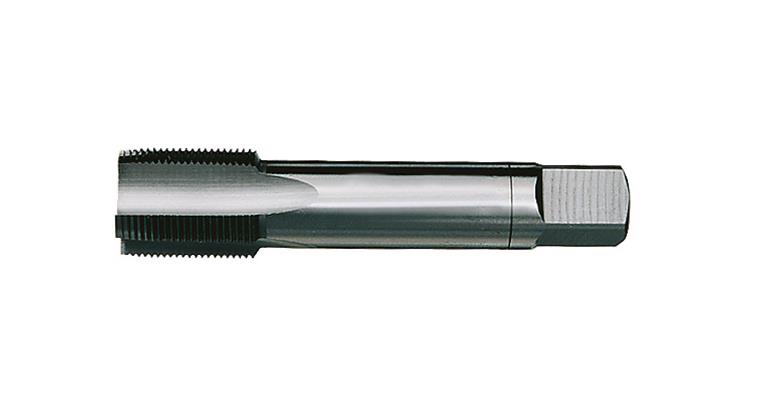

Hand tap DIN 2181 no. 1 taper tap HSS MF 11x1

Hand tap DIN 2181 no. 1 taper tap HSS MF 11x1

Hand tap DIN 2181 no. 1 taper tap HSS MF 11x1
Item no: 1014054 133

Online price:

Available in 8-10 working days.

Application
For production of standard ISO DIN 13 metric threads. For unalloyed and low-alloy steels up to 800 N/mm² strength.

Execution
  • Taper tap with chamfer shape D with one ring
  • Right-cutting
  • Straight-grooved
  • HSS, ground


Brand: LIZZARD
Thread type x nominal diameter: MF11
Pitch: 1 mm
Core hole diameter: 10,00 mm
Length: 63 mm
Shank diameter: 8 mm
Shank square: 6,2 mm
Colour ring system: Steels
Design: Taper tap
Shank style: Cylindrical with square drive
Thread type: Metric fine thread
Lead angle shape: D
DIN: 2181
Cutting material: HSS
Cutting direction: Right-hand cutting
Hole type: Clearance/blind hole ≤ 2.5xD
Surface: Uncoated
Tolerance of screw taps: 6H
Nominal diameter: 11 mm
Twist angle: 0°

EAN no.: 4024496018758

Product Datasheet
