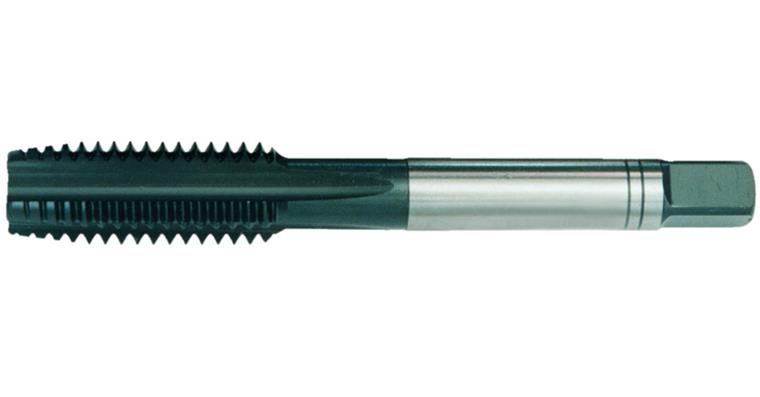

Hand tap DIN 352 no. 1 taper tap HSS-E M10

Hand tap DIN 352 no. 1 taper tap HSS-E M10

Hand tap DIN 352 no. 1 taper tap HSS-E M10
Item no: 1014023 110

Online price:

Available in 6-8 working days.

Application
For production of standard ISO DIN 13 metric threads. For hard-to-machine materials such as heat-, rust- and acid-resistant steel, bronze and thermosetting plastic, up to approx. 1200 N/mm2 strength.

Execution
  • Taper tap with chamfer shape A with one ring
  • Right-cutting
  • Straight-grooved
  • HSSE, surface-treated


Brand: LIZZARD
Thread type x nominal diameter: M10
Pitch: 1,5 mm
Core hole diameter: 8,50 mm
Length: 70 mm
Shank diameter: 7 mm
Shank square: 5,5 mm
Colour ring system: Stainless steels
Design: Taper tap
Shank style: Cylindrical with square drive
Thread type: Metric thread
Lead angle shape: A
DIN: 352
Cutting material: HSSE
Cutting direction: Right-hand cutting
Hole type: Clearance/blind hole ≤ 2.5xD
Surface: Vaporised
Tolerance of screw taps: 6H
Nominal diameter: 10 mm
Twist angle: 0°

EAN no.: 4024496017171

Product Datasheet
