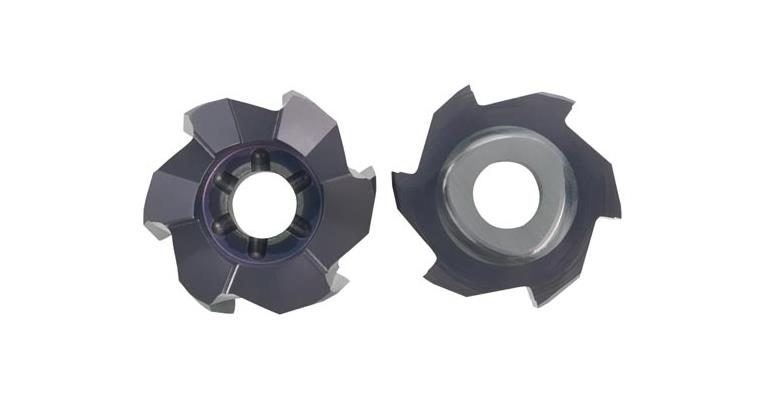

Reamer head 15 mm blind holes for polygonal shaft cat. no. 13535101+102

Reamer head 15 mm blind holes for polygonal shaft cat. no. 13535101+102

Reamer head 15 mm blind holes for polygonal shaft cat. no. 13535101+102
Item no: 1013539 150

Online price:

Available in 5-7 working days.

Application
For steel + VA.

Execution
Straight grooved for blind holes


Brand: HHW
Cutting edge diameter (d1): 15 mm
Tolerance of fit: H7
Number of teeth (Z): 6 PCS
Cutting material: SC
Surface: TiAlN
Cutting direction: Right-hand cutting
Cutting edge height: 9 mm
Cutting speed (aluminium long) suitability: 1
Cutting speed (aluminium long) Vc: 120,00 m/min
Cutting speed (aluminium short) suitability: 1
Cutting speed (aluminium short) Vc: 300,00 m/min
Cutting speed (brass long) suitability: 1
Cutting speed (brass long) Vc: 50,00 m/min
Cutting speed (brass short) suitability: 1
Cutting speed (brass short) Vc: 250,00 m/min
Cutting speed (bronze long) suitability: 1
Cutting speed (bronze long) Vc: 50,00 m/min
Cutting speed (bronze short) suitability: 1
Cutting speed (bronze short) Vc: 250,00 m/min
Cutting speed (cast) suitability: 1
Cutting speed (cast) Vc: 130,00 m/min
Cutting speed (graphite/carbon-fibre reinforced) suitability: 3
Cutting speed (hard 55) suitability: 3
Cutting speed (hard 65) suitability: 3
Cutting speed (nickel) suitability: 3
Cutting speed (plastic) suitability: 3
Cutting speed (steel 1000) suitability: 1
Cutting speed (steel 1000) Vc: 35,00 m/min
Cutting speed (steel 1300) suitability: 1
Cutting speed (steel 1300) Vc: 35,00 m/min
Cutting speed (steel 700) suitability: 1
Cutting speed (steel 700) Vc: 35,00 m/min
Cutting speed (super) suitability: 3
Cutting speed (titanium) suitability: 3
Cutting speed (VA mar) suitability: 1
Cutting speed (VA mar) Vc: 25,00 m/min
Cutting speed (VA off) suitability: 1
Cutting speed (VA off) Vc: 20,00 m/min
Size: 1
