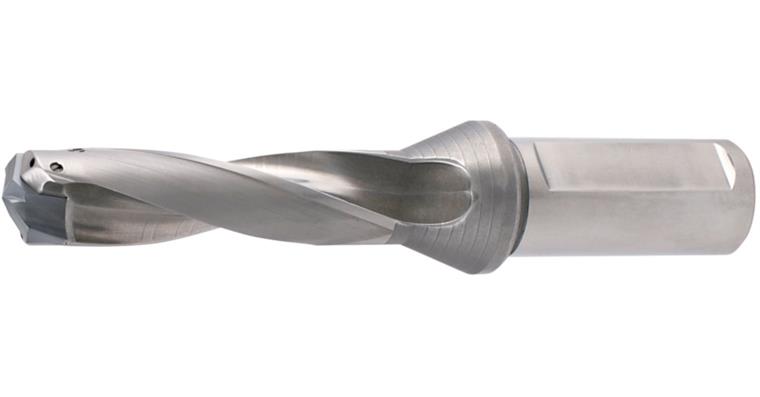

INDEXABLE INSERT DRILLING JIG 3XD W.IC D18.0 MM

INDEXABLE INSERT DRILLING JIG 3XD W.IC D18.0 MM

1011130180 INDEXABLE INSERT DRILLING JIG 3XD W.IC D18.0 MM
Item no: 1011130 180

Online price:

Available in 5-7 working days.

Application
For universal use up to 1300 N/mm².

Execution
  • Coated carrier body made of high-strength, heat-resistant powder metal
  • Diameter range 8.0-11.5 mm with straight shank HA
  • Diameter range 12.0-40.0 mm with straight shank HB

Advantage
  • High-precision h6 shank tolerance
  • Indexable inserts can be easily replaced in the power tool
  • Innovative rake
  • Polished chip chambers ensure smooth and reliable chip removal

Notes

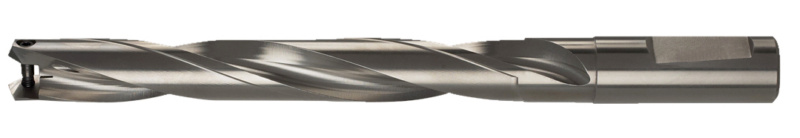

Available up to drilling depth 10xD and diameter 50 mm on request.

Brand: LIZZARD
Max. drilling depth (D): 3xD
Min./max. cutting edge diameter (D min./max.): 18.0-18.4 mm
Chip flute length: 72 mm
Length (L): 142 mm
Angle of the tip: 130 Degree
Shank diameter (D1): 20 mm
Coolant supply: Internal

EAN no.: 4024496151462

Product Datasheet
