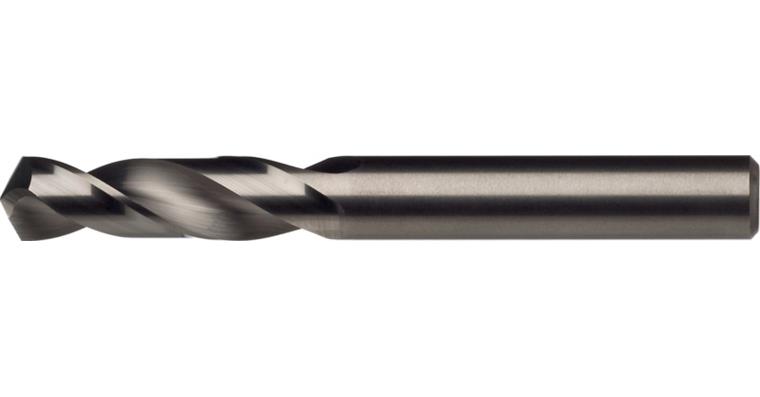

ATORN SC twist drill type N 3xD uncoated 9.7 mm x 89 mm 118° external

ATORN SC twist drill type N 3xD uncoated 9.7 mm x 89 mm 118° external

ATORN SC twist drill type N 3xD uncoated 9.7 mm x 89 mm 118° external
Item no: 1011030 197

Online price:

Available in 6-8 working days.

Application
Standard geometry for use up to a strength of 1300 N/mm².

Execution
Standard solid carbide tool with universal precision grinding

Advantage
  • excellent all-round properties and precise cutting pattern
  • universal use: minimises tool costs and improves flexibility
  • Cutting edge preparation minimises micro-fractures on the cutter


Brand: ATORN
Material to be processed: Universal use
Cutting material: SC
Surface: Uncoated
Type: N
Tool holding device: HA parallel shank
Cutting edge diameter: 9,7 mm
Chip flute length: 43 mm
Length: 89 mm
f steel 1000: 0,14 mm/r
DIN: 1897

ATORN-No.: 10473428

EAN no.: 4050293042214

Product Datasheet Datasheet cutting values
