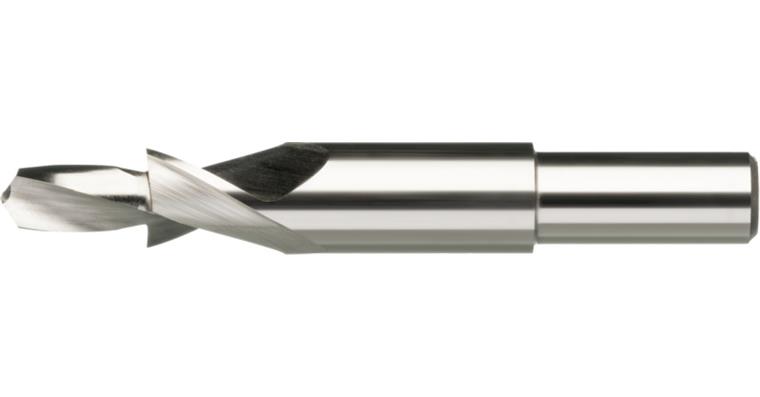

ATORN stepped drill bit type N, HSSE medium quality grade M3 6.0 mm HA

ATORN stepped drill bit type N, HSSE medium quality grade M3 6.0 mm HA

ATORN stepped drill bit type N, HSSE medium quality grade M3 6.0 mm HA
Item no: 1010853 101

Online price:

Still in stock: 5

Application
According to DIN/ISO 273 and countersinking according to DIN 74, for cylinder head screws according to DIN 912, 6912, 7984 and ISO 1207. Hole and countersink produced in one machining step.

Execution
profile-ground

Advantage
  • precise alignment of drill diameter and countersink diameter, lower process costs
  • Special geometry for outstanding centring and positional accuracy


Brand: ATORN
Material to be processed: Universal use
Cutting material: HSSE
Surface: Uncoated
Type: N
Angle of the tip: 118 Degree
Tool holding device: HA parallel shank
Suitable for screw thread: M3
Pilot hole diameter (d1): 3,4 mm
Spot-facer diameter (d2): 6 mm
Pilot hole length (l3): 9 mm
Chip flute length (l2): 15 mm
Length (l1): 45 mm
Shank diameter: 6 mm
f steel 1000: 0,04 mm/r
DIN: 0 - not applicable

ATORN-No.: 10440174

EAN no.: 4050293013054

Product Datasheet Datasheet cutting values
