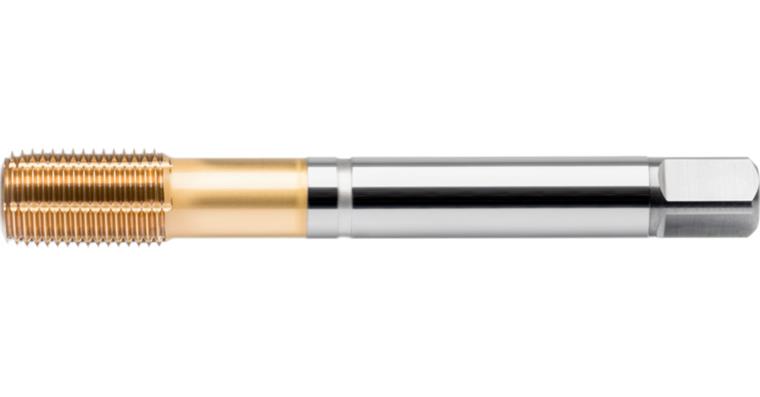

ATORN thread former HSSE-PM TiN G1/8 inch 3xD

ATORN thread former HSSE-PM TiN G1/8 inch 3xD

1003141549 ATORN thread former HSSE-PM TiN G1/8 inch 3xD
Item no: 1003141 549

Online price:

Available for immediate delivery

Application
For producing metric threads in through holes and blind holes on CNC or conventional machines in steel, stainless steel and non-ferrous metals up to 1300 N/mm².

Advantage
  • Innovative mould geometry ensures very high dimensional accuracy and process reliability
  • High-quality, torsion-resistant HSSE cutting material and surface finish for very high service life requirements


Brand: ATORN
Material to be processed: Universal use
Surface: TiN
Lead angle shape: C
Thread type: Pipe thread
Thread type x nominal diameter: G1/8
Pitch: 28
Cutting material: HSSE
Core hole diameter: 9,3 mm
Length: 90 mm
Hole type: Clearance/blind hole ≤ 3xD
Shank diameter: 7 mm
Shank square: 5,5 mm
Coolant supply: External
Application type/machine type: CNC | Conventional
Cutting speed (steel 1000) suitability (P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (P 1300 N/mm²): 1
Overall stainless steel suitability (M): 1
fitness not iron total (N): 2
Cutting speed (cast) suitability (K): 3
fitness Titan/Nickel/Super total (S): 3
Cutting speed (hard 65) suitability (H 65HRC): 3

ATORN-No.: 10483245

EAN no.: 4050293583250

Product Datasheet Datasheet cutting values
