ATORN NC reamer SC T=6 B 7-8° 10.0 mm H7 x 133 mm x 38 mm HA DIN 8093 K10

ATORN NC reamer SC T=6 B 7-8° 10.0 mm H7 x 133 mm x 38 mm HA DIN 8093 K10

ATORN NC reamer SC T=6 B 7-8° 10.0 mm H7 x 133 mm x 38 mm HA DIN 8093 K10
Item no: 1003130 396

Online price:

Available in 4-6 working days.

Application
For producing H7 fit tolerances in through holes on an NC machine in material groups up to 1300 N/mm².

Execution
7-8° left-hand spiral and variable pitch, cemented carbide quality K10

Advantage
good bore hole quality (dimensional tolerance, roundness, surface quality)


Brand: ATORN
Material to be processed: Universal use
Cutting material: SC
Groove type: Left-hand twist, 7-8°
Surface: Uncoated
Tool holding device: HA parallel shank
Cutting edge diameter: 10 mm
Tolerance of fit: H7
Length: 133 mm
Cutting edge length: 38 mm
Shank diameter: 10 mm
Number of cutting edges: 6 PCS
f steel 1300: 0,15 mm/r
DIN: 8093 similar

ATORN-No.: 11250018

EAN no.: 4050293129052

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

You might also be interested in this

  • Z-Spind Classic PLUS, Füße, 4 Fächer, 1950x800x500mm RAL 7035/7035
  •
    ATORN NC reamer SC T=6 B 7-8° 11.0 mm H7 x 142 mm x 41 mm HA DIN 8093 K10
  •
    ATORN HSS hand reamer, H7, B, 6°, 7.0mm x 107mm, T=6, DIN 206
    28,67 €
  • ATORN NC reamer SC T=6 B 7-8° 12.0 mm H7 x 151 mm x 44 mm HA DIN 8093 K10
    124,72 €
  • Saw belt Basic M42 1,435 x 13 x 0.65 mm 8/12
    31,51 €
  • Schließfachschrank Classic PLUS, Füße, 15 Fächer, 1950x900x500mm RAL 7035/7035
  •
    Ribbed rubber support 545x600 mm
  •
    Verlängerung 1500 mm für 3punkt-Innenmessschraube Messbereich 30-400 mm
  •
    HSS jigsaw blade Fein-035011 for metal pack=5 pcs effective length 50 mm 21 tpi
    18,08 €
  • Claw spanner angled V31CrV3 steel AF 13 mm
  •
    Extension 500 mm for 3-pt internal micrometer cat. no. 31905-07 MR 30-400 mm
    750,00 €

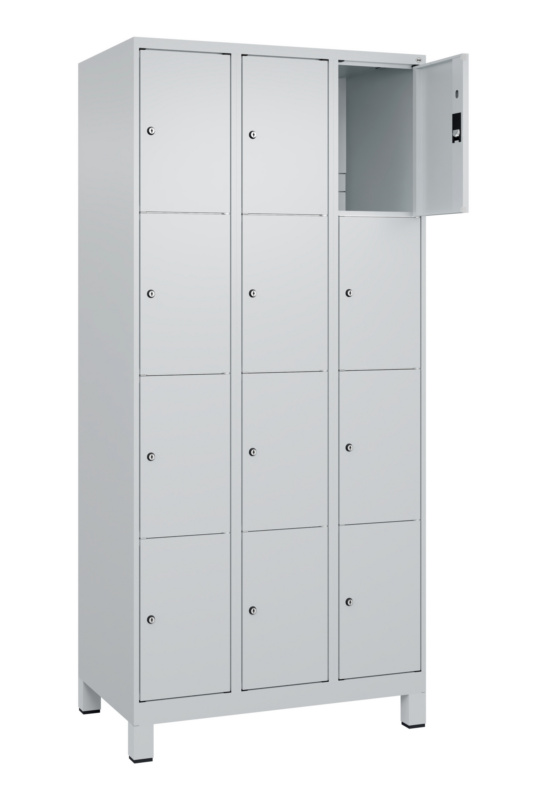

  • Schließfachschrank Classic PLUS, Füße, 12 Fächer, 1950x900x500mm RAL 7035/7035
