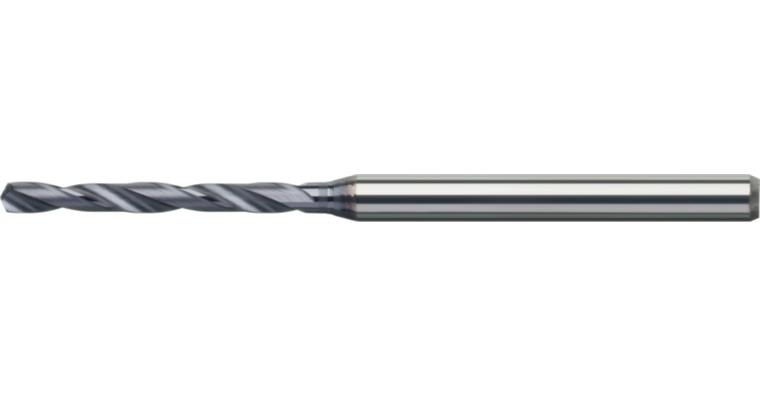

ATORN micro drill SC HPC 2.9 mm AlOXSN² HA shaft with internal cooling

ATORN micro drill SC HPC 2.9 mm AlOXSN² HA shaft with internal cooling

ATORN micro drill SC HPC 2.9 mm AlOXSN² HA shaft with internal cooling
Item no: 1003110 074

Online price:

sold out
Replacement article

Application
For HPC micro bore machining up to 5xD

Execution
High-performance micro drill bit with universal geometry, IC and 3 h6 standard shank

Advantage
  • Innovative flute geometry for universal application
  • Maximum concentricity: for serial machining with a reliable process
  • AlOXSN² coating for increased requirements regarding service life
  • Inner cooling ensures process reliability in chip removal

Notes
Required coolant pressure 60-120 bar (depending on diameter)

Brand: ATORN
Cutting edge diameter: 2,9 mm
Tolerance of cutting edge diameter: h7
Cutting material: SC
Surface: AlOXSN²
Max. drilling depth (D): 5xD
Type: HPC UNI
Coolant supply: Internal
Tool holding device: HA parallel shank
Angle of the tip: 130 Degree
Shank diameter: 3 mm
Chip flute length: 18 mm
Length: 46 mm
f steel 1000: 0,07 mm/r
DIN: 0 - not applicable

ATORN-No.: 11200650

EAN no.: 4050293203066

Product Datasheet Datasheet cutting values
