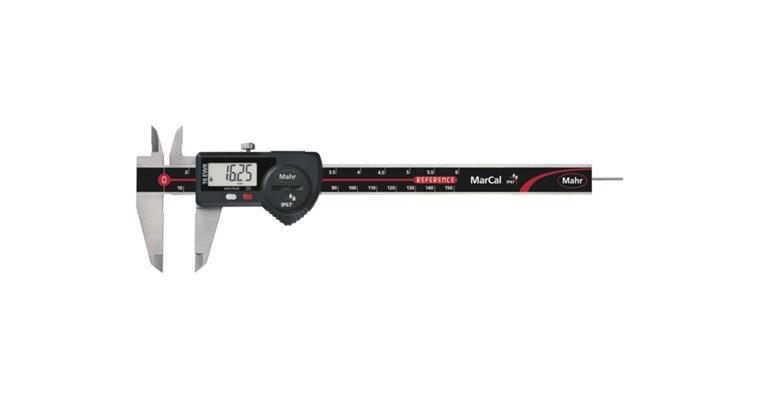

Messschieber IP67 digital 150mm, MarCal 16 EWR, Datenausgang, flach, Antriebsrad

Messschieber IP67 digital 150mm, MarCal 16 EWR, Datenausgang, flach, Antriebsrad

1001750174 Messschieber IP67 digital 150mm, MarCal 16 EWR, Datenausgang, flach, Antriebsrad
Item no: 1001750 174

Online price:

Available in 6-8 working days.

Application
For measuring external, internal, step and depth dimensions.

Execution
  • High-contrast digital display
  • Locking screw at the top
  • Lapped guideways
  • Measuring blades for internal measurements
  • Hardened, stainless slide and beam
  • Stepped measuring device
  • Dirt scraper in the slide
  • Functions: ON/OFF, AUTO ON/OFF, RESET (resetting the display), mm/inch, LOCK function (keyboard lock), DATA (data transfer)

Advantage
  • Ready for immediate measurements with reference system
  • Raised guideways for protecting the scale
  • Excellent resistance against dust, coolants and lubricants

Delivery
1x 3 V battery (type CR 2032)
1x operating instructions
1x case

Notes
For test gauge, see art. no. 1032060 201.
For connection cables, see art. no. 1035200 404-406.
For replacement batteries, see art. no. 1039900 102.

Brand: MAHR
Min./max. length measuring range: 0-150 mm
Digit increment: 0,01 mm
Depth gauge rod: Flat
Length of jaw: 40 mm
Data transmission type: Cable
Error limit: 0,03 mm
Digit increment in inches: 0,0005 in
Min./max. length measuring range in inches: 0-6 in
IP protection class: IP 67
Interface: Opto RS232 | USB 2.0 type A | Digimatic
With drive wheel: Yes
DIN: 862
Material: Steel, stainless
Calibration Group: A
Length of cross tips: 16 mm
Digit height: 8,5 mm
Type of locating: With locking screw

Manufacturer part no.: 4103067

EAN no.: 4059192002237
