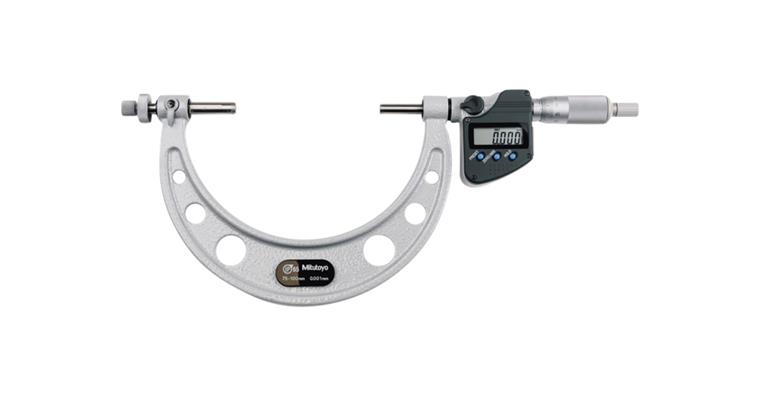

Micrometer with interchangeable ball measuring inserts 75-100 mm

Micrometer with interchangeable ball measuring inserts 75-100 mm

1001359095 Micrometer with interchangeable ball measuring inserts 75-100 mm
Item no: 1001359 095

Online price:

Available in 11-13 working days.

Application
For measuring the pitch circle or indirect tooth thickness on straight or helically toothed gears

Execution
  • Semi-gloss chrome-plated thimble and sleeve, dia. 18 mm
  • Interchangeable anvil/spindle gauge slides (optional)
  • Measurements of modules between 0.5-5.25 mm
  • Functions: ABS/INC (INC ZERO), automatic switch-off after 20 minutes of inactivity, low voltage alarm, function lock, HOLD, PRESET

Delivery
1x box
1x setting standard (from 25 mm)
1x adjustment wrench
1x battery
Without interchangeable gauge slides

Notes
For interchangeable ball measuring inserts, see art. no. 1001350 930-942

Brand: MITUTOYO
Min./max. length measuring range: 75-100 mm
Digit increment: 0,001 mm
Measuring spindle increments: 0,5 mm
Measuring surface diameter: 6,35 mm
Data transmission type: Cable | Bluetooth | Wireless
Error limit: 0,003 mm
IP protection class: IP 65
Interface: Digimatic | USB 2.0 type A | Bluetooth | Integrated Wireless
Other standard: Company standard
Spindle clamping: Yes
Digit height: 7,5 mm
Bracket depth: 79 mm
Min./max. measurement force: 0-10 N
Number of setting dimensions: 1 PCS
Calibration Group: D | E

Manufacturer part no.: 324-254-30

Product Datasheet
