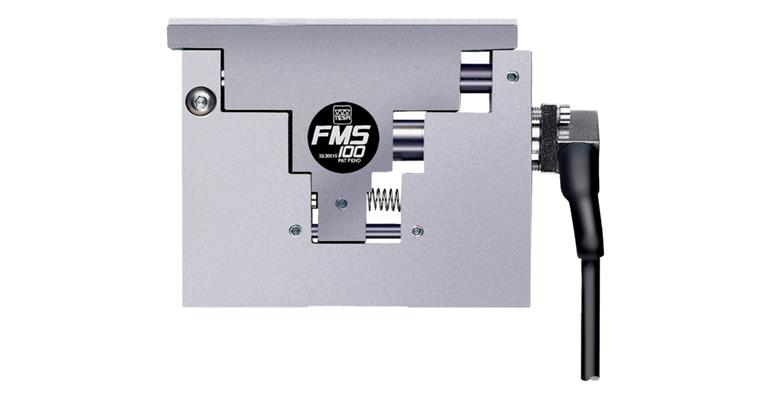

TESA electronic length measuring probe FMS 102 radial cable outlet

TESA electronic length measuring probe FMS 102 radial cable outlet

TESA electronic length measuring probe FMS 102 radial cable outlet
Item no: 1001331 805

Online price:

Available in 6-8 working days.

Application
Suitable for applications in multi-point measuring technology. The compact design permits the close arrangement of multiple FMS length measuring probes next to each other.

Execution
  • Precise, ball-guided measuring movement
  • Compact design, designed for continuous use
  • Effective direction of measuring force and lifting based on selected accessories
  • 5-pin plug in line with DIN 45322, cable length 2 m
  • Design Protected with IP54 degree of protection, splash-proof
  • Axial or radial cable outlet can each be swivelled by 45° in both directions

Advantage
  • Parallel-guided length measuring probe for confined installation, e.g. inside devices
  • Design saves on additional mechanical structural elements
  • Extensive range of accessories for a wide range of individual measuring tasks

Delivery
Measuring probe, test report with declaration of conformity


Brand: TESA TECHNOLOGY
Model: FMS102
IP protection class: IP 50
Cable output direction: Radial
Spindle lift: Compressed air
Measuring span of electronic length measuring technology: 4 mm
Measuring range of electronic length measuring technology: +/- 2 mm
Measurement force: 2 N
Max. scanning path: 5,8 mm
Max. linearity error (L in mm, measured from electric zero point): 0.2 µm + (3 x L³) µm
Repetition standard deviation acc. to DIN 1319: 0,5 µm
Front end position of spindle: -2.9 mm
Cable length: 2 m
Plug connector: 5-pin in accordance with DIN 45322
Pneumatic lift-off/pressurisation: Optional

Manufacturer part no.: 03230028

EAN no.: 7630041112559

Product Datasheet
