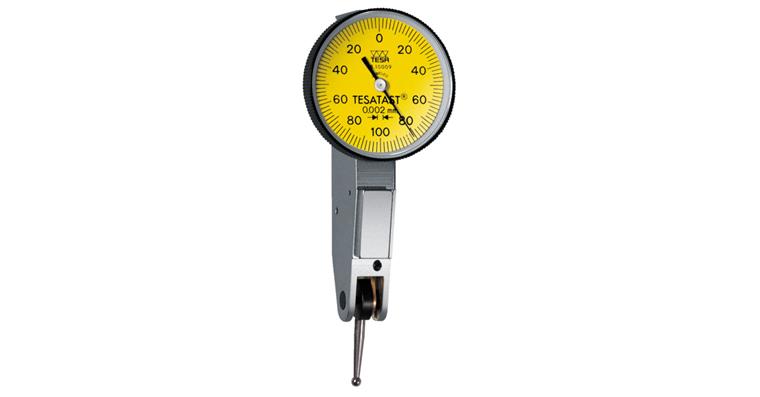

TESATAST lever gauge probe, 0.002 mm graduation, 28 mm diameter, case, 1810009

TESATAST lever gauge probe, 0.002 mm graduation, 28 mm diameter, case, 1810009

1001331349 TESATAST lever gauge probe, 0.002 mm graduation, 28 mm diameter, case, 1810009
Item no: 1001331 349

Online price:

Available in 6-8 working days.

Application
For measuring deviations in concentricity, axial run-out, parallelism and flatness. For centring shafts of boreholes and aligning workpieces.

Execution
  • Rotating dial
  • Anti-magnetic components
  • Automatic switching of probing direction
  • Measuring mechanism on ruby bearings
  • Housing made from one piece, brushed chromium-plated
  • Sonde de mesure chromée

Advantage
3 dovetail mounting surfaces

Delivery
Measuring probe with 2 mm ball diameter, 8 mm clamping shaft diameter, key disc, in plastic case


Brand: TESA TECHNOLOGY
Length measuring range: 0,2 mm
Scale value: 0,002 mm
Diameter: 28 mm
Length of measuring sensor from centre of ball: 12,5 mm
Measurement force: 0,15 N
Connection thread: M1.4
Ball diameter: 2 mm
Pivot range of measuring sensor: 240 Degree
DIN: 2270
Calibration Group: L

Manufacturer part no.: 01810009

EAN no.: 7630041110494

Product Datasheet
