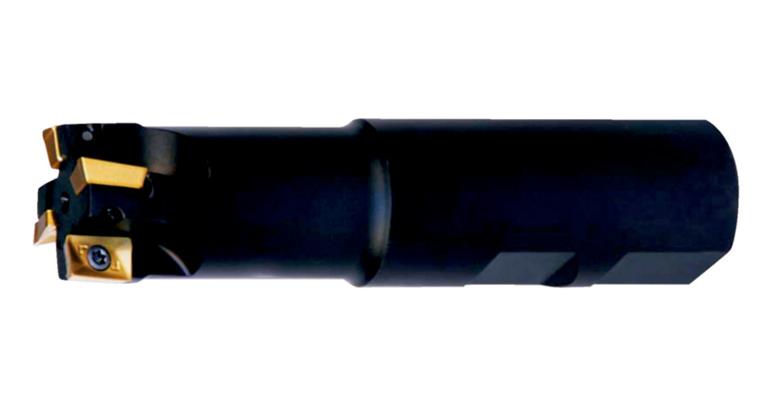

Angular mill. cutter 90° ECOline for AP.T 1003 DIN 1835 B Z4 L105 mm dia. 25 mm

Angular mill. cutter 90° ECOline for AP.T 1003 DIN 1835 B Z4 L105 mm dia. 25 mm

Angular mill. cutter 90° ECOline for AP.T 1003 DIN 1835 B Z4 L105 mm dia. 25 mm
Item no: 1097016 903

Online price:

Only while stocks last: 2

Application
For indexable milling insert AP*T
For general shoulder, face and groove milling.

Execution
  • Straight shank with driving surface in accordance with DIN 1835 B
  • Positive
  • Right-cutting
  • Burnished carrier tool
  • Soft-cutting, smooth milling behaviour
  • Axial runout < 0.03 mm
  • Concentricity < 0.03 mm

Delivery
Without indexable inserts


Brand: ---
Cutting edge diameter (D): 25 mm
Length (L): 95 mm
max. ap (p): 10 mm
Number of cutting edges: 4 PCS
Coolant supply: Internal
Surface: Burnished
Tool holding device: HB parallel shank
Shank style: Cylindrical DIN 1835-B
