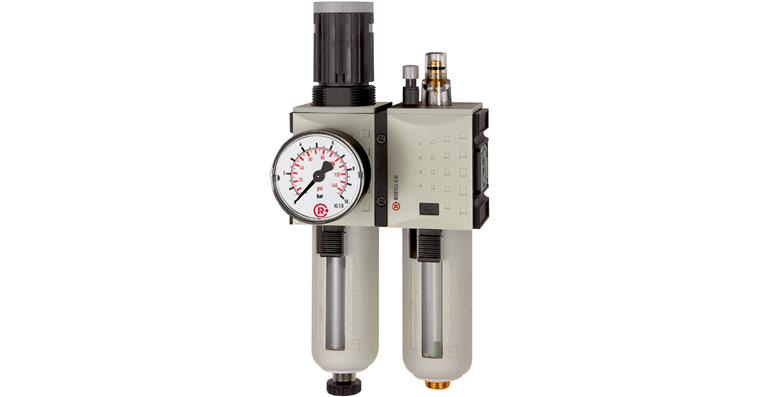

Conditioning unit FU 601-10 flow rate 1,750 l/min filter Cellpor 5 µm fine

Conditioning unit FU 601-10 flow rate 1,750 l/min filter Cellpor 5 µm fine

Conditioning unit FU 601-10 flow rate 1,750 l/min filter Cellpor 5 µm fine
Item no: 1092423 201

Online price:

Available in 5-7 working days.

Execution
Consisting of filter pressure regulator and pneumatic lubricator

Advantage
Correct pressure settings and atomised oil ensure a long service life for various pneumatic tools and controls.

Delivery
Incl. plastic container with drain valve for filter and plastic container for lubricator.


Brand: RIEGLER
Connection thread: G 1/4 inch
Container volume, filter: 28 cm³
Container volume, lubricator: 40 cm³
Width x height: 104 x 243 mm
Condensate drain: Semi-automatic
Cylinder diameter: 104 mm
Filtration grade: 5 µm
Flow capacity: 1750 l/min
Length: 226 mm
Length 2: 96 mm
Manometer display: 0-16 bar
Material of bins: Polycarbonate
Material of connection thread: Die-cast zinc
Material of filter: Cellpor (PE)
Material of gasket: Nitrile butadiene rubber (NBR)
Material of housing: Polyamide 66 GF60
Material of membrane: NBR (Nitrile Butadiene Rubber)
Max. inlet pressure: 16 bar
Max. pressure control range: 10 bar
Max. temperature conditions: 50 °C
Min. inlet pressure: 1,5 bar
Min. pressure control range: 0,5 bar
Min. temperature conditions: -10 °C
Type: FU 601-10

Manufacturer part no.: FU 601-10

EAN no.: 4047322600941
