Schubladenschrank 717x725x850mm 7 Schubladen 2x75/3x100/2x150 75kg RAL 7016

Schubladenschrank 717x725x850mm 7 Schubladen 2x75/3x100/2x150 75kg RAL 7016

Schubladenschrank 717x725x850mm 7 Schubladen 2x75/3x100/2x150 75kg RAL 7016
Item no: 1084312 115

Online price:

Availability on demand

Execution
  • Maximum stability - housing load capacity up to 4 t - drawer load capacity 75/200 kg
  • Excellent protection from dirt, liquids and mechanical stress thanks to the sealed housing with impact- and abrasion-resistant surface
  • Electrophoretic dip coating for corrosion protection and environmentally friendly powder coat
  • Professional labelling with LISTA Script labelling software and fold-up handle strip for inserting labels
  • Flexible options for adaptation thanks to pre-punched holes for worktops (punchout), castors, drawers, locking systems for easy conversion and retrofitting
  • Full extension and optimum drawer shell height for maximum utilisation
  • Lift-out protection prevents drawers from falling out and single drawer opening provides tip protection
  • Special LISTA dividers for optimum order and organisation for any purpose and perforated, slotted drawers
  • Runs perfectly smoothly due to the lack of crossbars on the differential extension slide

Advantage
  • Full extension and optimum drawer shell height for maximum utilisation
  • Runs perfectly smoothly due to the lack of crossbars on the differential extension slide

Notes
Please observe the installation instructions and loading specifications when filling and loading drawers and drawer cabinets. Total load capacity applies with evenly distributed load.

Brand: LISTA
Width: 717 mm
Height: 850 mm
Depth: 725 mm
Load-carrying capacity per drawer: 75 kg
Number of drawers: 7
With doors: No
Height x width x depth: 850 x 717 x 725 mm
Housing height: 850 mm
Drawer width (inner dimension) x drawer depth (inner dimension): 600 x 600 mm
Pullout type: Full extension
With SOFT-CLOSE closing function: No
With single pull-out safety brake: Yes
Drawer front height: 2 x 75 mm | 3 x 100 mm | 2 x 150 mm
Central locking: Yes
With cover panel: No
Cabinet colour: Anthracite grey RAL 7016
Colour of front: Anthracite grey RAL 7016
Surface: Powder-coated
With sliding handle: No
Lock type: Cylinder lock
Material: Sheet steel
Opening/closing system: Key Lock
LISTA unit: 36 x 36 E
Drawer depth (inner dimension): 600 mm
Drawer width (inner dimension): 600 mm

Manufacturer part no.: 14.409.200

EAN no.: 7612269114379

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • HHW VDI holder DIN 69880 B2A-50X25X44
  • Conical mounted point corundum pink shank dia. 6 mm grit coarse 46 DxH 16x45 mm
    5,55 €
  • Screw extractor size 3 for screws M 8-10
  • Drawer cabinet 1x60, 2x90, 2x150, 1x180 80/100 % extension 800x572x600 mm

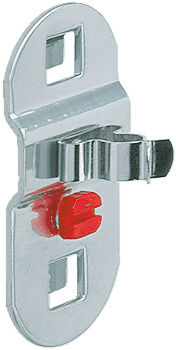

  • Tool clamp single for perforated plates with hole 10x10 mm dia. 13 mm pack=5 pcs
