Schubladenschrank 717x725x850mm 4 Schubladen 1x100/1x150/1x200/1x300 75kg 5012

Schubladenschrank 717x725x850mm 4 Schubladen 1x100/1x150/1x200/1x300 75kg 5012

Schubladenschrank 717x725x850mm 4 Schubladen 1x100/1x150/1x200/1x300 75kg 5012
Item no: 1084312 101

Online price:

Availability on demand

Execution
  • Maximum stability - housing load capacity up to 4 t - drawer load capacity 75/200 kg
  • Excellent protection from dirt, liquids and mechanical stress thanks to the sealed housing with impact- and abrasion-resistant surface
  • Electrophoretic dip coating for corrosion protection and environmentally friendly powder coat
  • Professional labelling with LISTA Script labelling software and fold-up handle strip for inserting labels
  • Flexible options for adaptation thanks to pre-punched holes for worktops (punchout), castors, drawers, locking systems for easy conversion and retrofitting
  • Full extension and optimum drawer shell height for maximum utilisation
  • Lift-out protection prevents drawers from falling out and single drawer opening provides tip protection
  • Special LISTA dividers for optimum order and organisation for any purpose and perforated, slotted drawers
  • Runs perfectly smoothly due to the lack of crossbars on the differential extension slide

Advantage
  • Full extension and optimum drawer shell height for maximum utilisation
  • Runs perfectly smoothly due to the lack of crossbars on the differential extension slide

Notes
Please observe the installation instructions and loading specifications when filling and loading drawers and drawer cabinets. Total load capacity applies with evenly distributed load.

Brand: LISTA
Width: 717 mm
Height: 850 mm
Depth: 725 mm
Load-carrying capacity per drawer: 75 kg
Number of drawers: 4
With doors: No
Height x width x depth: 850 x 717 x 725 mm
Housing height: 850 mm
Drawer width (inner dimension) x drawer depth (inner dimension): 600 x 600 mm
Pullout type: Full extension
With SOFT-CLOSE closing function: No
With single pull-out safety brake: Yes
Drawer front height: 1 x 100 mm | 1 x 150 mm | 1 x 200 mm | 1 x 300 mm
Central locking: Yes
With cover panel: No
Cabinet colour: Light blue RAL 5012
Colour of front: Light blue RAL 5012
Surface: Powder-coated
With sliding handle: No
Lock type: Cylinder lock
Material: Sheet steel
Opening/closing system: Key Lock
LISTA unit: 36 x 36 E
Drawer depth (inner dimension): 600 mm
Drawer width (inner dimension): 600 mm

Manufacturer part no.: 79.382.010

EAN no.: 7612269044454

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN twist drill N HSS, steam-treated, DIN 338, 3.0 mm x 61 mm x 33 mm, 118°
    1,80 €

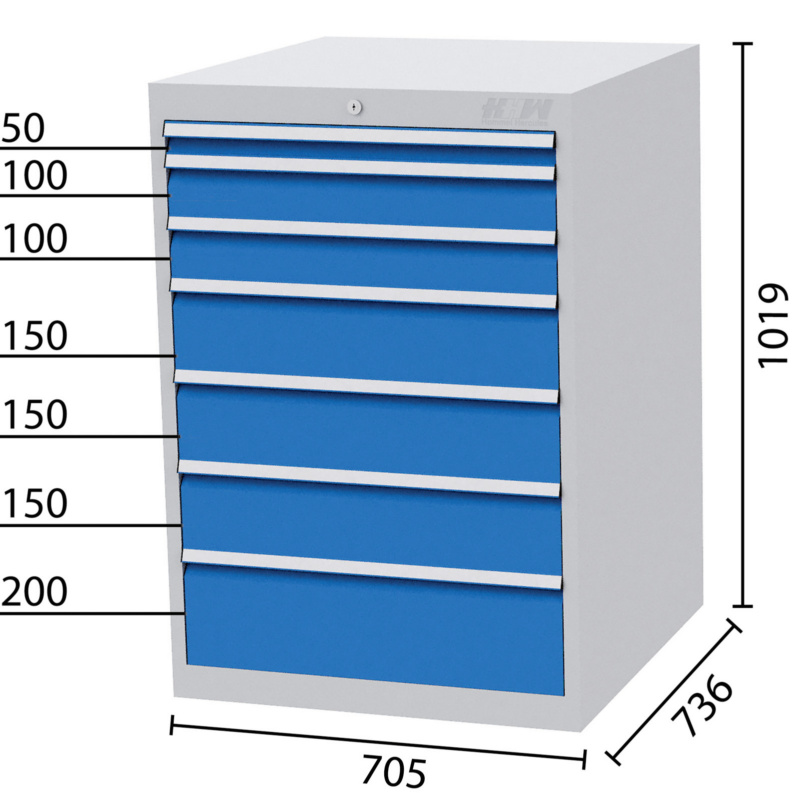

  • Drawer cabinet 7 drawers 1x50 2x100 3x150 1x200mm 705x736x1019mm 5010
  •
