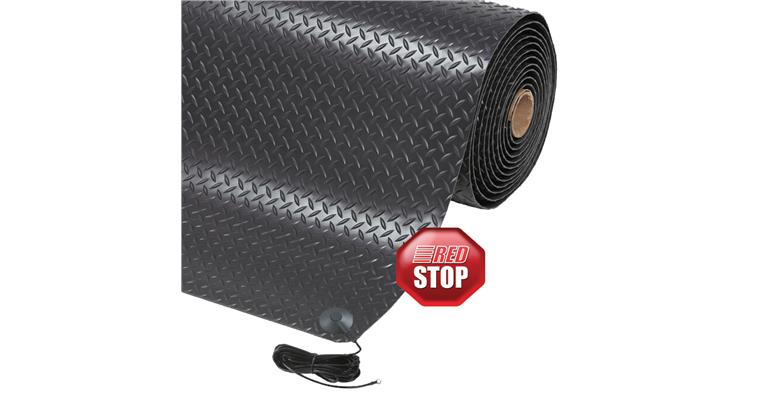

Durable, dissipative anti-fatigue mat Diamond Stat™ black 910x3000x14 mm

Durable, dissipative anti-fatigue mat Diamond Stat™ black 910x3000x14 mm

Durable, dissipative anti-fatigue mat Diamond Stat™ black 910x3000x14 mm
Item no: 1082406 103

Online price:

Availability on demand

Application
For high loads. For dry, industrial environments.

Execution
  • Non-slip surface R10 to DIN 51130 and BG Rule BGR181
  • With RedStop™: Non-slip underlay to prevent displacement of mat
  • Fire rating Cfl-S1 in accordance with EN 13501-1
  • Fulfils IEC 61340-4-1 (category DIF), measured resistance Rg 106-109 ohms, Rp 106-109 ohms
  • Material thickness 14 mm (4.7 mm PVC laminated on 9.3 mm microcellular vinyl)
  • Equipped with a 10 mm push button and earthing cable

Advantage
  • Safe and fast dissipation of static charge to prevent overvoltage damage to sensitive electronic parts or devices
  • Checker plate profile ensures good slip resistance

Delivery
Delivered with 4 chamfered safety edges

Notes
Sold by the metre 0-22.8 m on request.

Brand: NOTRAX
Length x width: 3000 x 910 mm
Material thickness: 14 mm
Material: PVC - Polyvinyl chloride
Surface structure: Stud plate / closed
Mat design: Individual mat
Min. temperature resistance: -10 °C
Max. temperature resistance: 70 °C
Suitable for wet areas: No
Antistatic: Yes
Anti-fatigue: Yes
Non-slip: Yes
Compliant with REACH: Yes
Colour: Black
ESD-capable: Yes
Mat feature: Insulation | Anti fatique | Access to bicycles etc | Anti slip | Intensive use | NFSI | Safety

Manufacturer part no.: 826S0312BL

Product Datasheet
