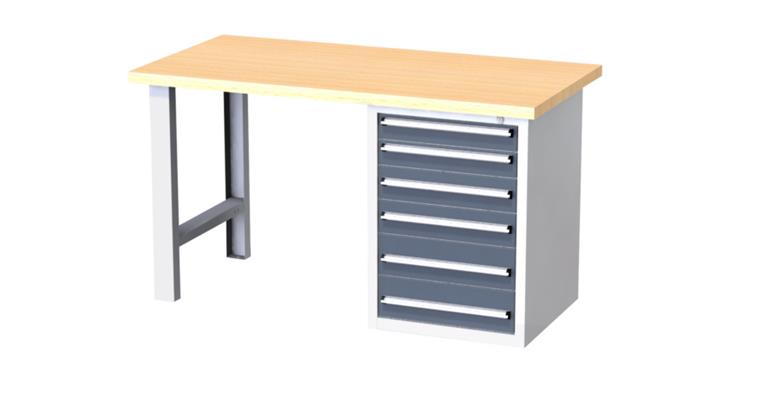

Modular workstation multiplex plate natural 1500x700x840 mm RAL 7035/5010

Modular workstation multiplex plate natural 1500x700x840 mm RAL 7035/5010

Modular workstation multiplex plate natural 1500x700x840 mm RAL 7035/5010
Item no: 1082300 102

Online price:

Availability on demand

Execution
  • Worktop natural beech Multiplex
  • Base frame made of sturdy square tubing 45 x 45 x 2 mm, 800 mm high
  • Drawer cabinet complete with 6 roller-mounted drawers
  • Paint, powder-coated

Delivery
Unassembled, easy self-assembly.

Notes
For drawer fitting assortments, see art. no. 1082345.

Brand: ---
Material of worktop: Multiplex beech
Working height: 840 mm
Load-carrying capacity: 400 kg
Plate width: 1500 mm
Plate depth: 700 mm
Plate thickness: 40 mm
Number of drawers: 6 PCS
Drawer front height: 1 x 60 mm | 2 x 90 mm | 2 x 150 mm | 1 x 180 mm
Drawer width (inner dimension): 437 mm
Drawer depth (inner dimension): 513 mm
Load-carrying capacity per drawer: 100 kg
Pullout type: Partial extension, 85% roller bearings
With single pull-out safety brake: Yes
Lock type: Cylinder lock
Central locking: Yes
Adjustable in height: No
Levelling: No
Cabinet colour: Light grey RAL 7035
Colour of front: Gentian blue RAL 5010
Material of base frame: Steel plate
Surface: Powder-coated
